Axium™ Prime soft coil

Detachable coils

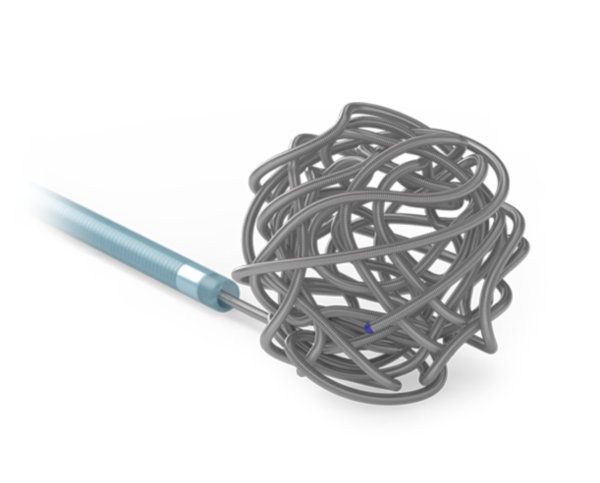

Axium™ Prime soft coil

The Axium™ Prime soft coil has a thin wire and winding pattern to seek open spaces for treating intracranial aneurysms.

Ordering information
Contact a representative
Indications, Safety, and Warnings

Description

Axium™ Prime soft coils are intended for the endovascular embolization of intracranial aneurysms. Axium™ Prime Soft coils are also intended for the embolization of other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.1

Larger OD for higher packing

Thinner .0015" primary wire and precisely matched .0115" outer diameter (OD) to fill more space.2

Random break design

Seeks and fills spaces and changes direction when met with resistance to help packing density.3

Softness

Softest filling confirmed. 8X softer vs the average filling coil.†,4


† Data derived from reference bench testing may not be representative of clinical performance, 4-8-HX Microplex coil n=3, 4-8-HX Target Ultra coil n=3, 4-8-HX Axium Prime coil n=5

Features

Axium™ coil family provides optimal implant designs for a variety of coiling procedures with our framing, filling, and finishing coils. Axium™ products provide proven softness, high-volume packing, minimal kickback, and exceptional detachment. ‡,3,5–10

99.7%

Proven reliability with first attempt detachment success9–11





Better trackability through tortuous anatomy§,12-14

Distal tapered pusher design allows for increased articulation and enhanced trackability13,15

Minimal micro catheter kick-back

Ball and socket design allows for 360° axial rotation which facilitates coil delivery with less micro catheter kick-back13–16

The entire Axium™ family of coils features a progressive outer diameter matched to the implant size, which optimizes stability and volume throughout the entire coil line.5


‡ Based on bench test comparing average work number of Axium™ Prime extra soft coil versus Target® Nano™ coil. 20 units of each coil were tested. Bench testing is not indicative of clinical performance.; Determined using formula for cylinder (volume = πr2 x length). Based on calculated k-factor values

§ Data derived from reference bench testing may not be representative of clinical performance.

Characteristics

Coil outer diameter (in) 0.0115 0.0125 0.0135 0.0145
Diameter (mm) 3.0–3.5 4.0–6.0 7.0–10.0 12.0–25.0
Length (cm) 6–10 6.0–25.0 12.0–40.0 30.0–50.0
Volume (mm3) 4.02–6.70 4.75–19.79 11.08–36.94  31.96–53.27

Ordering information

Axium™ Prime soft 3-D coils

Item number Coil diameter (mm) Implant length (cm) Primary coil outer diameter (in)
APB-4-6-3D-SS 4 6 0.0115
APB-4-8-3D-SS 4 8 0.0115
APB-4-10-3D-SS 4 10 0.0115
APB-4-12-3D-SS 4 12 0.0115
APB-5-8-3D-SS 5 8 0.0115
APB-5-10-3D-SS 5 10 0.0115
APB-5-15-3D-SS 5 15 0.0115
APB-6-10-3D-SS 6 10 0.0115
APB-6-15-3D-SS 6 15 0.0115
APB-6-20-3D-SS 6 20 0.0115

Axium™ Prime soft helix coils

Item number Coil diameter (mm) Implant length (cm) Primary coil outer diameter (in)
APB-4-6-HX-SS 4 6 0.0115
APB-4-8-HX-SS 4 8 0.0115
APB-4-10-HX-SS 4 10 0.0115
APB-4-12-HX-SS 4 12 0.0115
APB-5-10-HX-SS 5 10 0.0115
APB-5-15-HX-SS 5 15 0.0115
APB-5-20-HX-SS 5 20 0.0115
APB-6-12-HX-SS 6 12 0.0115
APB-6-20-HX-SS 6 20 0.0115

Similar products

TM* Third party brands are trademarks of their respective owners.

  1.  Axium™ Prime Extra Soft coil Instructions for Use: M045840CDOC2 Rev D.
  2. White JB, Ken CG, Cloft HJ, Kallmes DF. Coils in a nutshell: a review of coil physical properties. AJNR Am J Neuroradiol. 2008 Aug;29(7):1242-6.
  3. Based on internal test report, TR-NV12051 Axium Prime Finishing Coils Design Validation Report. March 2015.
  4. Based on internal test report TR-NV10836. Bench test comparing average work number of Axium™ Prime coil (super soft) versus other competitor 4x8 fill coils. 15 units of Axium™ Prime coil and 9 units of the competitor coils were tested. November 2012.
  5. Based on internal test report TR-NV14378. Axium™ Prime Coil Softness (k-factor). October 2017.

  1. Based on internal test report TR-NV12442. Bench test comparing average work number of Axium™ Prime Extra Soft coil versus Target™* Nano™* coil. 20 units of each coil were tested. September 2015.
  2. Based on internal test report TR-NV12197, Axium Prime 1.5mm 3D Finishing Coils Design Verification and Validation Adoption. Rev B.
  3. Based on internal test report TRNV-10304, Axium Prime Super Soft Design Validation Report. Rev A.
  4. Based on internal test report TR09-218, Axium Prime Reliability Test Report. Rev A.
  5. Based on internal test report TR-NV13164, Design Verification and Validation Adoption Report Fitz Roy. Rev C.
  6. Based on internal test report D00776522, Axium, Axium Prime, Concerto Competitor Detachment Reliability Marketing Report. Rev A.
  7. Based on internal test report TR10-126, NG Axium Pusher Unibody Feasibility Report. Rev A.
  8. Based on internal test report TR-NV12481, Axium Prime Coil Extra Soft Field Training Material. Rev A.
  9. Based on internal test report TR-NV13175, Fitz Roy Design Verification Test Report. Rev D.
  10. Based on internal test report FD3117, Implant Articulation Test, Axium/Axium Prime Vs. Competitors. Rev A.
  11. Based on internal test report FD3118, Implant Layup Test, Axium/Axium Prime Vs. Competitors. Rev A.
