Micro catheters

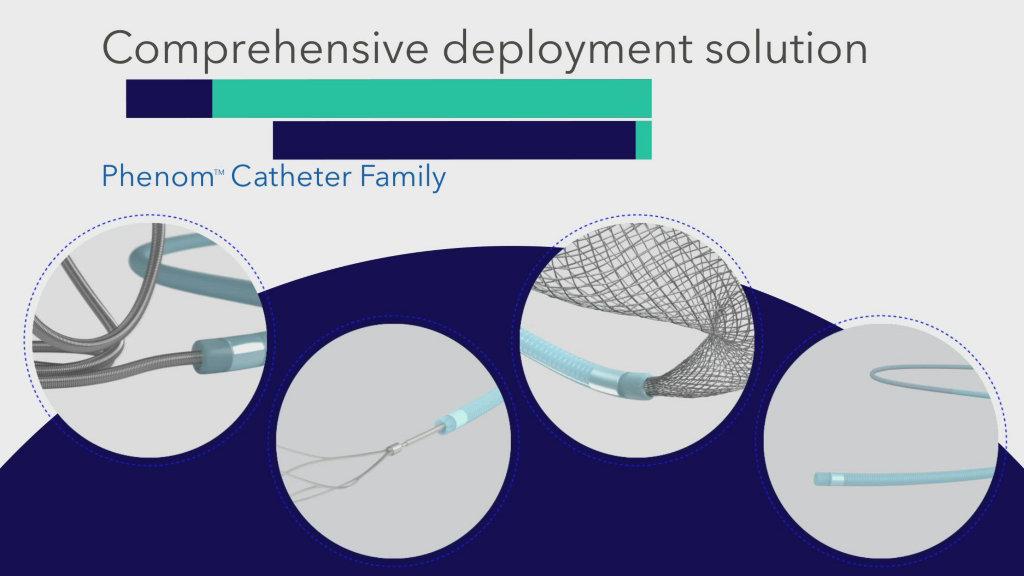

<p>Phenom™ 17, 21, and 27 catheters are comprehensive device deployment solutions for treating hemorrhagic and acute ischemic stroke.</p>
Phenom™ 17 catheter is designed to provide a stable tip platform ideal for coils. Its construction allows a robust and stable proximal shaft, as well as a fl exible distal shaft to track well in torturous anatomy, providing smooth coil delivery.†,2,3
A catheter for acute ischemic stroke procedures
Phenom™ 21 catheter is available in 160 cm length for AIS procedures, thus increasing access for:†,5
Designed for Pipeline™ device deployment6
| Item number | Outer diameter (Fr) | Inner diameter (in) | Working length | Soft distal segment (cm) | Flexible single coil segment (cm) | Tip shape | Maximum guidewire (in) |
|---|---|---|---|---|---|---|---|
| FG11150-0615-2S | 2.2 > 1.8 | 0.017 | 150 | 6 | 15 | Straight | 0.014 |
| FG11150-0615-2J | 2.2 > 1.8 | 0.017 | 150 | 6 | 15 | J Curve | 0.014 |
| FG11150-0615-2X | 2.2 > 1.8 | 0.017 | 150 | 6 | 15 | 45° Curve | 0.014 |
| FG11150-0615-2R | 2.2 > 1.8 | 0.017 | 150 | 6 | 15 | 90° Curve | 0.014 |
| Item number | Outer diameter (Fr) | Inner diameter (in) | Working length | Soft distal segment (cm) | Flexible single coil segment (cm) | Tip shape | Maximum guidewire (in) |
|---|---|---|---|---|---|---|---|
| FG13150-0615-2S | 2.6 > 2.3 | 0.021 | 150 | 6 | 15 | Straight | 0.018 |
| FG13160-0615-1S | 2.6 > 2.3 | 0.021 | 150 | 6 | 15 | Straight | 0.018 |
| Item number | Outer diameter (Fr) | Inner diameter (in) | Working length | Soft distal segment (cm) | Flexible single coil segment (cm) | Tip shape | Maximum guidewire (in) |
|---|---|---|---|---|---|---|---|
| FG15150-0615-1S | 3.1 > 2.8 | 0.027 | 150 | 6 | 15 | Straight | 0.025 |
| FG15150-0630-1S | 3.1 > 2.8 | 0.027 | 150 | 6 | 30 | Straight | 0.025 |
| FG15160-0615-1S | 3.1 > 2.8 | 0.027 | 160 | 6 | 15 | Straight | 0.025 |
The Onyx™ liquid embolic system (LES) is an injectable, non-adhesive agent used for presurgical embolization of brain arteriovenous malformations (bAVMs).
Pipeline™ Flex with Shield Technology™ is a third-generation embolization device designed for placement in a parent vessel across the neck of an intracranial aneurysm (IA).
Pipeline™ Vantage is an embolization device with a surface modification designed for placement in a parent vessel across the neck of an intracranial aneurysm.
The Solitaire™ X revascularization device is designed for effective clot retrieval during thrombectomies for acute ischemic stroke (AIS) patients.
† Data derived from reference bench testing may not be representative of clinical performance.
‡ Compared to Excelsior SL-10 (n=15). Data derived from reference bench testing may not be representative of clinical performance.
