Axium™ Prime frame coil

Detachable coils

Axium™ Prime frame coil

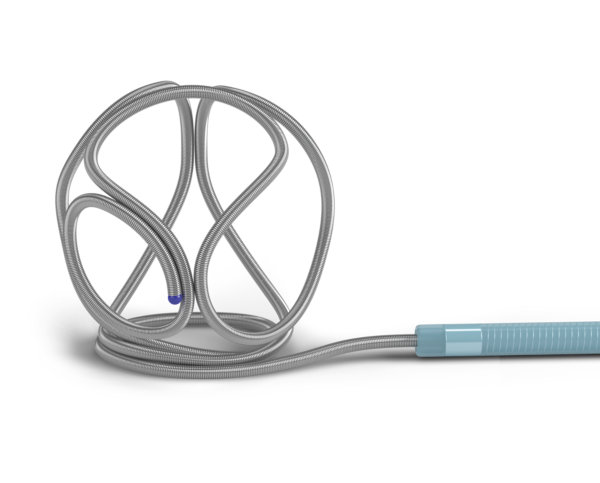

The Axium™ Prime frame coil has a unique hybrid loop configuration and is a stable first coil option for various aneurysm shapes and neck sizes.

Description

Axium™ Prime frame coils are intended for the endovascular embolization of intracranial aneurysms. Axium™ Prime frame coils are also intended for the embolization of other neurovascular abnormalities such as arteriovenous malformations and arteriovenous fistulae.  Axium™ Prime frame coils are also intended for arterial and venous embolizations in the peripheral vasculature.1

First and last closed loop2

Stable construct of the design reduces risk of coil compaction

Middle open loops2

Conformable to all aneurysm shapes, including irregular shapes — making it a single solution first coil

Dense neck coverage2

Maintains coils in aneurysm and reduces risk of coil herniation

Features

Axium™ coil family provides optimal implant designs for a variety of coiling procedures with our framing, filling, and finishing coils. Axium™ products provide proven softness, high-volume packing, minimal kickback, and exceptional detachment.†,3–9

99.7%

Proven reliability with first attempt detachment success3,4,10





Better trackability through tortuous anatomy‡,11-13

Distal tapered pusher design allows for increased articulation and enhanced trackability13,14

Minimal micro catheter kick-back

Ball and socket design allows for 360° axial rotation which facilitates coil delivery with less micro catheter kick-back12–15

The entire Axium™ family of coils feature a progressive outer diameter matched to the implant size, which optimizes stability and volume throughout the entire coil line.9


† Based on bench test comparing average work number of Axium™ Prime extra soft coil versus Target® Nano™ coil. 20 units of each coil were tested. Bench testing is not indicative of clinical performance.; Determined using formula for cylinder (volume = πr2 x length). Based on calculated k-factor values

‡ Data derived from reference bench testing may not be representative of clinical performance.

Characteristics

Coil outer diameter (in) 0.0115 0.0125 0.0135 0.0145
Diameter (mm) 3.0–3.5 4.0–6.0 7.0–10.0 12.0–25.0
Length (cm) 6.0–10.0 6.0–25.0 12.0–40.0 30.0–50.0
Volume (mm3) 4.02–6.70 4.75–19.79 11.08–36.94  31.96–53.27

Ordering information

Axium™ Prime frame coils

Item number Coil diameter (mm) Implant length (cm) Primary coil outer diameter (in)
FC-3-6-3D 3 6 0.0115
FC-3-8-3D 3 8 0.0115
FC-3-10-3D 3 10 0.0115
FC-3.5-6-3D 3.5 6 0.0115
FC-3.5-8-3D 3.5 8 0.0115
FC-3.5-10-3D 3.5 6 0.0115
FC-4-6-3D 4 6 0.0125
FC-4-8-3D 4 8 0.0125
FC-4-10-3D 4 10 0.0125
FC-4-12-3D 4 12 0.0125
FC-4-15-3D 4 15 0.0125
FC-5-8-3D 5 8 0.0125
FC-5-10-3D 5 10 0.0125
FC-5-15-3D 5 15 0.0125
FC-5-20-3D 5 20 0.0125
FC-6-10-3D 6 10 0.0125
FC-6-15-3D 6 15 0.0125
FC-6-20-3D 6 20 0.0125
FC-6-25-3D 6 25 0.0125
FC-7-12-3D 7 12 0.0135
FC-7-15-3D 7 15 0.0135
FC-7-20-3D 7 20 0.0135
FC-7-30-3D 7 30 0.0135
FC-8-15-3D 8 15 0.0135
FC-8-20-3D 8 20 0.0135
FC-8-30-3D 8 30 0.0135
FC-9-20-3D 9 20 0.0135
FC-9-30-3D 9 30 0.0135
FC-10-20-3D 10 20 0.0135
FC-10-30-3D 10 30 0.0135
FC-10-40-3D 10 40 0.0135
FC-12-30-3D 12 30 0.0145
FC-12-40-3D 12 40 0.0145
FC-12-50-3D 12 50 0.0145
FC-14-30-3D 14 30 0.0145
FC-14-40-3D 14 40 0.0145
FC-14-50-3D 14 50 0.0145
FC-16-40-3D 16 40 0.0135
FC-16-50-3D 16 50 0.0145
FC-18-40-3D 18 40 0.0145
FC-18-50-3D 18 50 0.0145
FC-20-50-3D 20 50 0.0145
FC-22-50-3D 22 50 0.0145
FC-25-50-3D 25 50 0.0145
