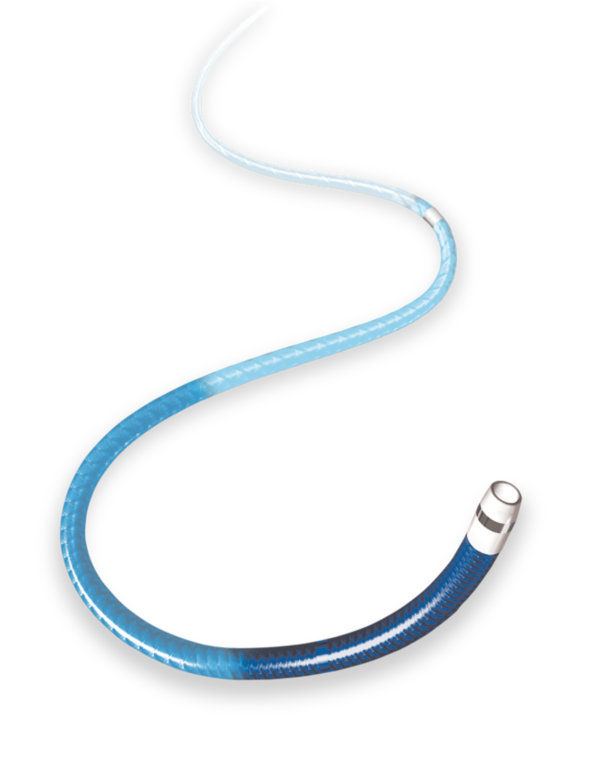

Echelon™ micro catheter

The Echelon™ micro catheter is a single-lumen catheter designed to be introduced over a steerable guidewire into the vasculature during neurovascular procedures

Ordering information
Contact a representative
Indications, Safety, and Warnings

Description

Performance at every turn, from navigation through treatment

The Echelon™ micro catheter has nitinol braid technology with progressive picks-per-inch.1,2 It provides:

  • A balance between pushability and softness via graduated zones and transition points†,3,4
  • Optimal proximal pushability, stability, and support†,3,4
  • Kink resistance and minimal ovalization to maintain lumen durability for reliable device delivery†,3,4

† Data derived from reference bench testing may not be representative of clinical performance.

Features

  • A proximal fluoro-safe marker band1,2
  • Steam-shapeable flexible tip with dual marker bands3,4
  • DMSO compatible5
  • Large 0.017" ID1,2
  • For the Echelon™ 10 micro catheter, a low profile 0.028" OD2

Ordering information

Echelon™ 10 micro catheter

Item number Outer diameter (Fr) Inner diameter (in) Usable length (in) Maximum guidewire (in) Tip shape
105-5091-150 2.1 > 1.7 0.017 150 0.014 Straight
145-5091-150 2.1 > 1.7 0.017 150 0.014 45°
190-5091-150 2.1 > 1.7 0.017 150 0.014 90°

Echelon™ 14 micro catheter

Item number Outer diameter (Fr) Inner diameter (in) Usable length (in) Maximum guidewire (in) Tip shape
105-5092-150 2.4 > 1.9 0.017 150 0.014 Straight
145-5092-150 2.4 > 1.9 0.017 150 0.014 45°
190-5092-150 2.4 > 1.9 0.017 150 0.014 90°

  1. Based on EchelonTM 14 micro catheter drawings #DWGS105-5092-150 Rev BJ, DWGS145-5092-150 Rev AS, DWGS190-5092-150 Rev AV.
  2. Based on EchelonTM 10 micro catheter drawings #DWGS105-5091-150 Rev BB, DWGS145-5091-150 Rev AU, DWGS190-5091-150 Rev AW.
  3. Based on internal test report #TR03-044. EchelonTM 10 micro catheter, Design Verification & Validation. Rev A.
  4. Based on internal test report #TR02-134. EchelonTM 14 micro catheter, Design Verification. Rev B.
  5. Based on internal test report #TR05-008. EchelonTM Micro Catheter & OnyxTM Liquid Embolic System Compatibility Testing. Rev A.
