Endotracheal tubes

Shiley™ endobronchial tube

Endotracheal tubes

Shiley™ endobronchial tube

The Shiley™ endobronchial tube is designed to support oxygenation during single lung ventilation.

Description

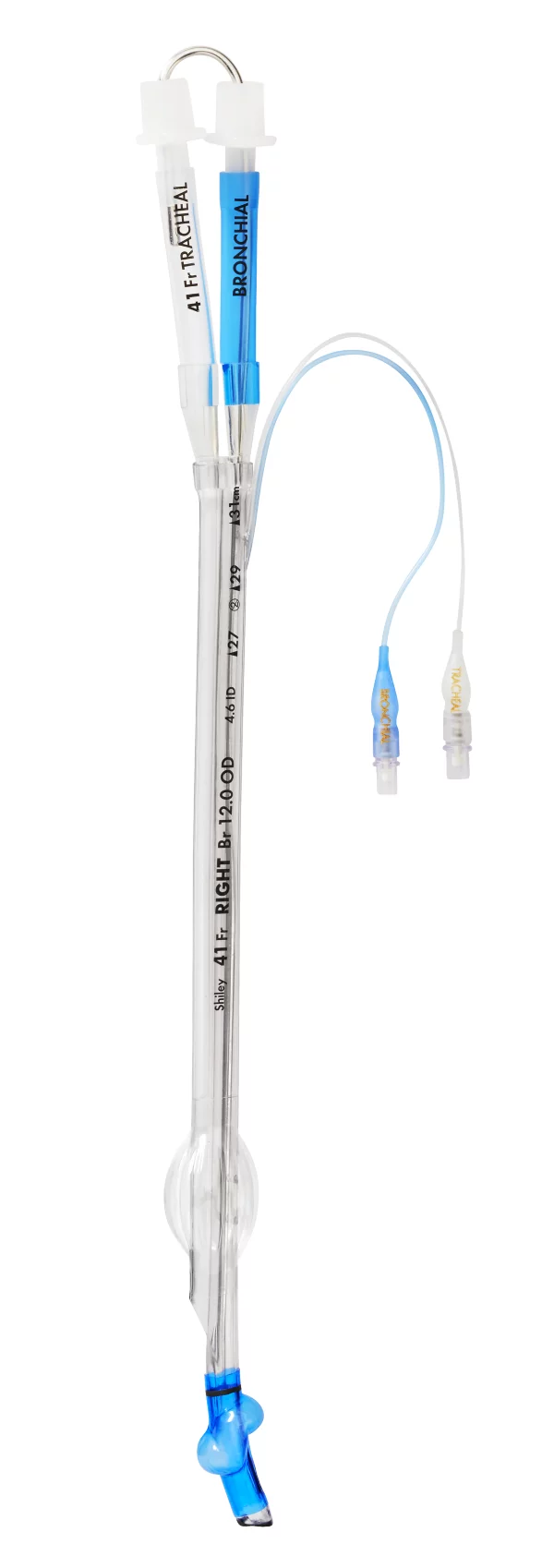

Endobronchial tube right or left with polyurethane cuff

The endobronchial tube allows for the inflation of one lung as indicated for thoracic surgery or intensive care. There is a right and a left Shiley™ endobronchial tube option depending on the lung that needs to be ventilated. The tube features a low pressure tracheal and bronchial cuff to minimize risk of mucosal damage. The specially designed bronchial cuff assists with location of the distal tip when verification is confirmed by a fiber-optic bronchoscope. There is a slight curve at the distal tip to assist with placement. There is also an X-ray opaque carinal hook for confirming placement.

Features

  • Slightly curved bronchial tip for position placement
  • X-ray opaque markers at the distal tip, above the bronchial cuff and at the tracheal opening to aid location and verification of the tube position
  • The tube features two cuffs:
    • A blue colored cuff at the distal end for the bronchus, with a blue proximal lumen, blue pilot balloon for easy identification
    • A clear, polyurethane cuff for positioning within the bronchus
OLYMPUS DIGITAL CAMERA

Ordering information

Item number Size (Fr) ID (mm) OD (mm) Cuff placement Units per box
125028 28 3.1 9.3 Left 1
125032 32 3.4 10.7 Left 1
125035 35 4.8 11.7 Left 1
125037 37 5.1 12.3 Left 1
125039 39 5.3 13 Left 1
125041 41 5.4 13.7 Left 1
126035 35 4.8 11.7 Right 1
126037 37 5.1 12.3 Right 1
126039 39 5.3 13 Right 1
126041 41 5.4 13.7 Right 1
