| Item number | Description | Units per box |
|---|---|---|
| RS08000 | Microstream™ microMediCO2 OEM module | 1 |
Capnography OEM solutions
Microstream™ microMediCO₂ OEM module
Capnography OEM solutions
Microstream™ microMediCO₂ OEM module
The Microstream™ microMediCO₂ OEM module is rugged and power efficient, making monitoring simple and accurate even in smaller devices.
Description
A powerful platform of Microstream™ capnography
The Microstream™ microMediCO2 OEM module is the core component of Microstream™ end-tidal carbon dioxide (etCO2) measurement technology. Smaller and lower power than previous models, the microMediCO2 OEM module can be designed into an even wider range of host configurations.
With less power required, the Microstream™ microMediCO2 OEM module makes etCO2 monitoring simple and accurate, even in the smallest and most portable monitors.
Features

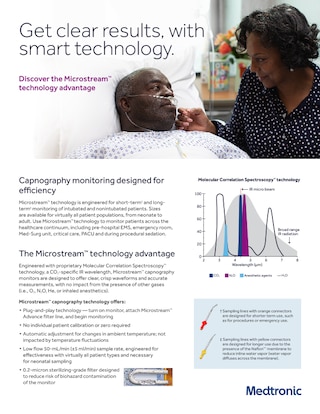

Discover the Microstream™ technology advantage.
Microstream™ technology offers unique and highly specific measurement using Molecular Correlation Spectroscopy™.
- Measures etCO2, fractional inspired carbon dioxide (fiCO2), respiration rate
- Clear, crisp CO2 waveforms, even in nonintubated patients
- Highly accurate CO2 values, even in variable breathing conditions
- Small, compact size
- Rugged, reliable technology
- Fast on power up; fully accurate at first reading
- Low sampling flow rate of 50 mL per minute, required for neonates
- Low power consumption
- RS-232, USB
- RoHS compliant
- Full suite of Smart Capnography™ algorithms
- Integrated Pulmonary Index™ (IPI), measuring adequacy of ventilation and oxygenation
- Smart Breath Detection™ Algorithm, mitigating the effects of artifact, enabling quality monitoring for non-intubated general floor patients
- Smart Alarm for Respiratory Analysis™ (SARA) to recognize and reduce nuisance alarms, promoting caregiver alarm vigilance
- Apnea-Sat Alert™ measuring apneas per hour to help identify and quantify apneas
- Oxygen desaturation index (ODI) measures values to help identify and quantify apneas and oxygen desaturation events
- etCO2 sampling solutions for all environments and patient populations
- Adult, pediatric, neonate
- Intubated (standard and high humidity)
- Non-intubated (nasal, oral/nasal) with an option for O2 delivery (standard and high humidity)
- Smart CapnoLine™ guardian provides continuous nasal and oral CO2 monitoring and oral O2 delivery in upper endoscopy patients without compromise of patient position or endoscopic technique
- Easy to integrate and versatile for all clinical applications and environments:
- Procedural sedation
- General care floor
- ICU — ventilation management, weaning and post weaning ventilation monitoring
- NICU
- Emergency department and prehospital EMS
- Resuscitation environment
- Sleep labs
- Complete OEM integration kit and technical support
Specifications
| CO2 waveform, etCO2, fiCO2, respiration rate | |
| Integrated Pulmonary Index™, Apnea-Sat Alert™ (apneas per hour) | |
| CO2 partial pressure (at sea level) | Accuracy |
| 0–38 mmHg | ± 2 mmHg |
| 39–99 mmHg | ± (5% of reading + 0.08 × reading – 39mmHG) |
| 100–150 mmHG | ± (5% of reading + 0.08 × reading – 39mmHG) |
| CO2 range | 0 to 150 mmHg, 0 to 20 volume %, 0 to 20 kPa |
| Accuracy 0–38 mmHg ± 2 mmHg | 0–38 mmHg ± 2 mmHg |
| 39–150 mmHg ± (5% of reading + 0.08 for every 1 mmHg above 38 mmHg) | |
| CO2 sampling flow rate | 50 mL per minute (+15 mL per minute, -7.5 mL per minute) flow measured by volume |
| Initialization time | Typically 30 seconds to obtain both reading and waveform. At full accuracy when value first appears. |
| Respiration rate | 0–150 breaths per minute |
| Mode | Adult, pediatric, neonatal |
| Power requirements | 1.0W (typical in normal operation), 0.5W in standby mode |
| Powering options | 3.3V only, 3.3V to digital supply; 3.3V–5.5V to DC/DC input, 5V only |
| Weight | 115 g |
| Communication interface | RS-232 Standard; USB, RS485 and TTL available upon request |
| Temperature | |
| Operating | 0 to 65 C (32 to 149 F) |
| Storage | -40 to 70 C (-4 to 158 F) |
| Operating pressure and altitude | |
| Pressure | 430 mmHg to 795 mmHg |
| Altitude | -380 m to 4572 m (-1,250 ft to 15,000 ft) |
| Storage pressure and altitude | |
| Pressure | 88 mmHg to 795 mmHG |
| Altitude | -380 to 15,240 (-1,250 ft to 50,000 ft) |
| Relative humidity | 10% to 95% (non-condensing) |
The following standards are met by the module, as long as the monitor in which it is installed also meets the standards:
- RoHS Directive 2011/65/EU, 2015/863/EU, 60601-1, 80601-2-55, EN ISO 21647 (including transport requirements)
- EN 60601-1-2
- Emission class B
- CSA C22.2 No. 601-1-M90
- ISO 7137/DO-160E
- IEC 62304
- UL 60601
- EN1789 (applicable parts for medical devices)
- MIL STD 810F Method 514.5
- Helicopter category 14
- Meets all applicable standards and regulations required to support a host monitor 510 (k) submission.
Ordering information
