| Item number | Description | Units per box |
|---|---|---|
| PMC-40M-GE | GE CARESCAPE™* CO2 Microstream™ parameter device | 1 |
Capnography OEM solutions

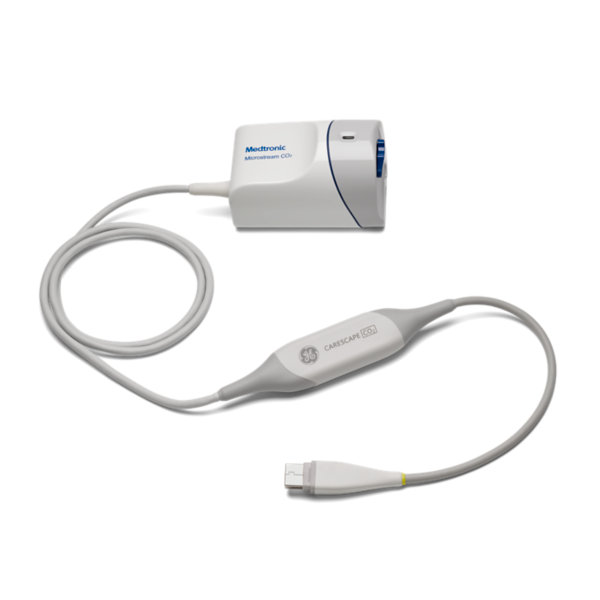

GE CARESCAPE™* CO₂ Microstream™ parameter device
<p>The GE CARESCAPE™* CO₂ Microstream™ parameter device provides Microstream™ technology in an external parameter for compatible CARESCAPE™* monitors.</p>
Features
The Microstream™ technology advantage
Microstream™ technology uses Molecular Correlation Spectroscopy™, a proprietary CO2-specific IR wavelength engineered to deliver clear, crisp waveforms and accurate measurements, with no impact from the presence of other gases (i.e., O2, N2O, He, or inhaled anesthetics). Proprietary Smart Capnography™ algorithms, Smart Breath Detection™ algorithm (SBD) and Smart Alarm for Respiratory Analysis™ algorithm (SARA), are designed to simplify the use of CO2 monitoring on Microstream™ technology-enabled patient monitors to help improve patient safety and clinical workflow.1
With fast power-up and fully accurate measurements at first reading, Microstream™ technology offers:
- Low flow 50 mL per minute sample rate, effective for virtually all patient types and necessary for neonatal sampling
- No individual patient calibration or rezeroing required
Microstream™ advance filter lines
Design enhancements help improve the patient experience and the performance of the sampling line. Softer tubing may help increase patient compliance and safety, while the improved kink-resistance of the tubing maintains an uninterrupted oxygen supply to patients, and continuous CO2 sampling.2
Microstream™ advance filter lines offer:
- Soft tubing and neutral scent to help improve patient compliance
- Intubated and nonintubated options for short-term and longer-term monitoring
- 0.2-micron sterilizing-grade filter designed to help reduce risk1 of biohazard contamination of the monitor
- Uni-junction™ technology, designed for effective sampling with and without oxygen delivery, from both nose and the mouth, even at low tidal volumes
- Kink-resistant tubing engineered to mitigate interrupted oxygen flow and corresponding alarms, which meets the ISO 13544-2 compliance standard
Not available in all countries.
Specifications
| Physical | |
| Weight | 340 g (0.75 lb) |
| Dimensions | 94 mm (l) × 60 mm (w) × 58 mm (h) (3.7 in × 2.4 in × 2.3 in) |
| Cable length | 94 mm (l) × 60 mm (w) × 58 mm (h) (3.7 in × 2.4 in × 2.3 in) |
| Performance | |
| CO2 sampling flow rate | 50 mL per min (± 5 mL per min) flow measured by volume |
| Initialization time | Typically 30 seconds to obtain both reading and waveform. Fully accurate measurement at first reading. |
| Mode | Adult, pediatric, and neonatal |
| Compliance standards and directives | |
IEC 60601-1 (Ed. 3.2):2020 IEC 60601-1-2 (Ed. 4.1):2020 ISO 80601-2-55 (2nd Ed.):2018 IEC 60601-1-6 (Ed. 3.2):2020 IEC 62304 (Ed. 1.1):2015 IEC 62366-1:2020 ISO 20417:2021 ISO 15223-1:2021 |
|
| Environmental | |
| Operating temperature | 0 to 40 C (32 to 104 F) |
| Storage temperature | -40 to 70 C (-40 to 158 F) |
| Operating relative humidity | 10% to 95% (noncondensing) |
| Operating pressure | 57 kPa to 108 kPa (430 to 805 mmHg) |
| Operating altitude | -487 m to 4,572 m (-1,600 ft to 15,000 ft) |
Ordering information
Similar products
The Microstream™ capnography monitoring system should not be used as the sole basis for diagnosis or therapy and is intended only as an adjunct in patient assessment.
TM* Third-party brands are trademarks of their respective owners.
† Always refer to the user instructions provided with GE Healthcare monitors.
- Ronen M, Weissbrod R, Overdyk FJ, Ajizian S. Smart respiratory monitoring: clinical development and validation of the IPI™ (integrated pulmonary index) algorithm. J Clin Monit Comput. 2017;31:435–442.
- Blonder Y, Mazor E, Jew K. Advanced capnography sampling lines may improve patient comfort and compliance. Med Devices (Auckl). 2021;14:37–42.
