Achieve Advance™ mapping catheter

<p>The Achieve Advance™ is an intra-cardiac mapping and diagnostic catheter for cardiac ablation procedures for atrial fibrillation.</p>

Ordering information

Contact a representative

Features

The Achieve Advance™ mapping catheter allows for the assessment of pulmonary vein (PV) isolation during the cryoablation procedure. The catheter is deployed through the cryoballoon guide wire lumen, minimizing the number of catheter exchanges and allowing the procedure to be performed using a single transseptal puncture. The Achieve Advance™ mapping catheter may also provide recording of real-time PV potentials during cryoablation with the cryoballoon.

The Achieve Advance™ mapping catheter was developed to allow for iteration and innovation. It offers the following:

Solid core design which provides an extendable platform to allow future device enhancements
An additional 25 mm loop size which may improve ability to visualize time to isolation (TTI) and accommodate varied PV anatomy
Compatibility with cardioversion to reduce the need to remove catheters

See how Achieve™ mapping catheters work

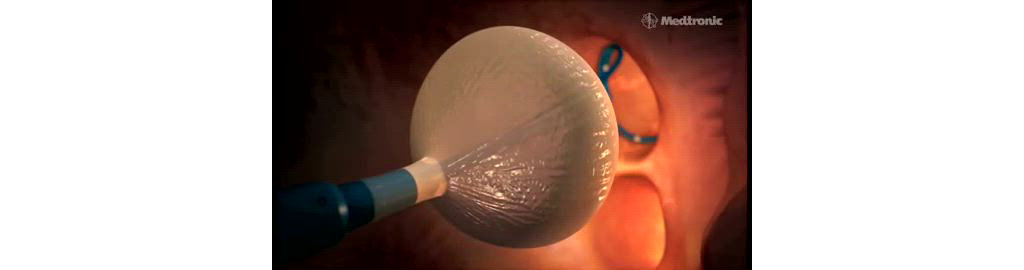

Watch how Achieve™ mapping catheters are used during the cryoballoon procedure in the treatment of AF. (02:10)

Specifications

Size
Maximum catheter shaft size (OD)	3.3 Fr, 1.1 mm (0.043 in)
Compatible device minimum internal diameter (ID)	3.4 Fr, 1.12 mm (0.044 in)
Effective length	146 cm (57.5 in)
Overall length	165 cm (65.0 in)
Introducer length	14 cm (5.5 in)
Distal segment
Loop diameter	15 mm (0.59 in) , 20 mm (0.79 in) , or 25 mm (0.98 in)
Number of electrodes	8 or 10
Electrode length	1 mm (0.039 in)
Electrode spacing	4 mm (0.16 in) or 6 mm  (0.24 in)
Device material
Shaft material	Stainless steel core wire with polyimide coating
Distal segment material	Nitinol and biocompatible copolymer (Pebax®*)
Electrode material	Platinum-iridium
