Tracheostomy tubes

Shiley™ flexible adult tracheostomy tube

<p>Shiley™ flexible tracheostomy tube with disposable or reusable inner cannula options are available in cuffed and cuffless configurations.</p>

Features

Shiley™ flexible tubes were designed with larger inner diameters, compared to earlier Shiley™ tracheostomy tubes. Airflow around the outer cannula, when the cuff is deflated, has increased by an average of 242%.It has been found that improved airflow may reduce the work of breathing required to speak and wean from a tracheostomy tube.5

Other enhancements in the new family of Shiley™ flexible tracheostomy tubes include color-coding by size (for disposable inner cannula products only), an expanded range of sizes, a soft material made with a non-DEHP plasticizer, a clear flange, and a design that makes it possible to ventilate with or without an inner cannula.

Insertion force may be reduced

  • A thinner, less bulky cuff reduces insertion force by 39%.4

  • A beveled tip on all product configurations eases percutaneous insertion.6

  • The Shiley™ flexible tracheostomy products use sizing (ID and OD length and tube curvature) that is similar to those used in earlier Shiley™ products.

May improve clinician’s ability to provide mechanical ventilation

  • The flexible tube eases percutaneous insertion with an integrated 15 mm connector.
  • The TaperGuard™ cuff reduces fluid leakage by 99% in simulated models.2

May reduce the risk of irritation and skin breakdown

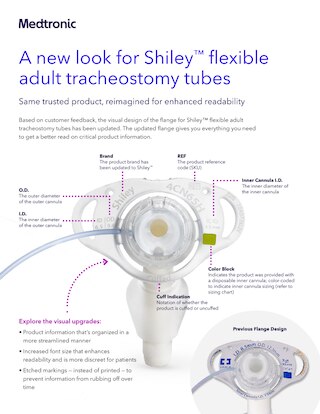

  • Flange material is a transparent, soft material designed to conform to the patient’s anatomy to help reduce the risk of skin breakdown.
  • Flange openings are designed to improve airflow to sensitive skin. It is offset to help reduce contact with the patient’s skin.
  • The TaperGuard™ cuff exerts 18.6% less lateral wall pressure on the trachea.2,3

Increased airflow over legacy product

  • Airflow around the outer cannula when the cuff is deflated has increased by an average of 242% in simulated models.4
  • Improved airflow may reduce the work of breathing required to speak and wean from a tracheostomy tube.5

Ordering information

United States

Shiley™ flexible tracheostomy tube with TaperGuard™ cuff and disposable inner cannula

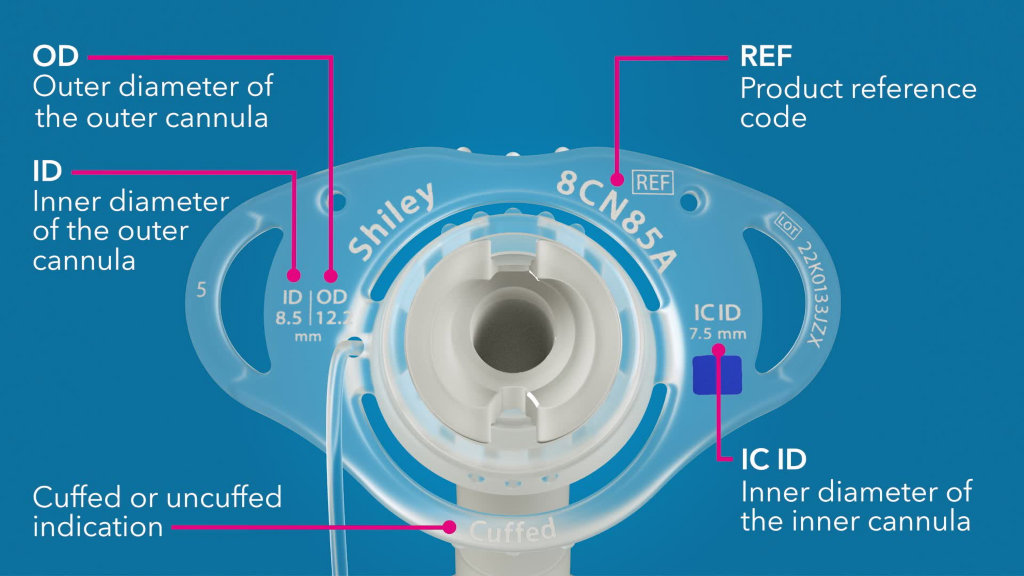

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Cuff resting diameter Units per box
4CN65H 6.5 9.4 5.5 62 20.6 1
5CN70H 7.0 10.1 6.0 68 23 1
6CN75H 7.5 10.8 6.5 74 25.4 1
7CN80H 8.0 11.4 7.0 77 25.4 1
8CN85H 8.5 12.2 7.5 79 26.6 1
9CN90H 9.0 12.7 8.0 79 27.6 1
10CN10H 9.5 13.8 9.0 79 28.6 1

Shiley™ replacement disposable inner cannula for cuffed, flexible tracheostomy tube

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
41C65 6.5 9.4 5.5 62 1
51C70 7.0 10.1 6.0 68 1
61C75 7.5 10.8 6.5 74 1
7CN80A 8.0 11.4 7.0 77 1
8CM85A 8.5 12.2 7.5 79 1
9CN90A 9.0 12.7 8.0 79 1
10CN10A 9.5 13.8 9.0 79 1

Shiley™ flexible tracheostomy tube, cuffless, with disposable inner cannula

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
4UN65H 6.5 9.4 5.5 62 1
5UN70H 7.0 10.1 6.0 68 1
6UN75H 7.5 10.8 6.5 74 1
7UN80H 8.0 11.4 7.0 77 1
8UN85H 8.5 12.2 7.5 79 1
9UN90H 9.0 12.7 8.0 79 1
10UN10H 10.0 13.8 9.0 79 1

Shiley™ replacement disposable inner cannula for cuffless, flexible tracheostomy tube

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
41C65 6.5 9.4 5.5 62 1
51C70 7.0 10.1 6.0 68 1
61C75 7.5 10.8 6.5 74 1
71C80 8.0 11.4 7.0 77 1
81C85 8.5 12.2 7.5 79 1
91C90 9.0 12.7 8.0 79 1
10IC10 10.0 13.8 9.0 79 1

Shiley™ flexible tracheostomy tube with TaperGuard™ cuff and reusable inner cannula

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Cuff resting diameter Units per box
4CN65R 6.5 9.4 5.5 62 20.6 1
5CN70R 7.0 10.1 6.0 68 23 1
6CN75R 7.5 10.8 6.5 74 25.4 1
7CN75R 8.0 11.4 7.0 77 25.4 1
8CN85R 8.5 12.2 7.5 79 26.6 1
9CN90R 9.0 12.7 8.0 79 27.6 1
10CN10R 10.0 13.8 9.0 79 28.6 1

Shiley™ flexible tracheostomy tube, cuffless, with reusable inner cannula

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
4UN65R 6.5 9.4 5.5 62 1
5UN70R 7.0 10.1 6.0 68 1
6UN75R 7.5 10.8 6.5 74 1
7UN80R 8.0 11.4 7.0 77 1
8UN85R 8.5 12.2 7.5 79 1
9UN90R 9.0 12.7 8.0 79 1
10UN10R 10.0 13.8 9.0 79 1

Global CFNs

Shiley™ flexible tracheostomy tube with TaperGuard™ cuff and disposable inner cannula

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Cuff resting diameter Units per box
4CN65A 6.5 9.4 5.5 62 20.6 1
5CN70A 7.0 10.1 6.0 68 23 1
6CN75A 7.5 10.8 6.5 74 25.4 1
7CN80A 8.0 11.4 7.0 77 25.4 1
8CN85A 8.5 12.2 7.5 79 26.6 1
9CN90A 9.0 12.7 8.0 79 27.6 1
10CN10A 9.5 13.8 9.0 79 28.6 1

Shiley™ replacement disposable inner cannula for cuffed, flexible tracheostomy tube

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
41C65 6.5 9.4 5.5 62 1
51C70 7.0 10.1 6.0 68 1
61C75 7.5 10.8 6.5 74 1
7CN80A 8.0 11.4 7.0 77 1
8CM85A 8.5 12.2 7.5 79 1
9CN90A 9.0 12.7 8.0 79 1
10CN10A 9.5 13.8 9.0 79 1

Shiley™ flexible tracheostomy tube, cuffless, with disposable inner cannula

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
4UN65A 6.5 9.4 5.5 62 1
5UN70A 7.0 10.1 6.0 68 1
6UN75A 7.5 10.8 6.5 74 1
7UN80A 8.0 11.4 7.0 77 1
8UN85A 8.5 12.2 7.5 79 1
9UN90A 9.0 12.7 8.0 79 1
10UN10A 10.0 13.8 9.0 79 1

Shiley™ replacement disposable inner cannula for cuffless, flexible tracheostomy tube

Item number ID (mm) OD (mm) Inner cannula ID (mm) Length (mm) Units per box
41C65 6.5 9.4 5.5 62 1
51C70 7.0 10.1 6.0 68 1
61C75 7.5 10.8 6.5 74 1
71C80 8.0 11.4 7.0 77 1
81C85 8.5 12.2 7.5 79 1
91C90 9.0 12.7 8.0 79 1
10IC10 10.0 13.8 9.0 79 1

Resources

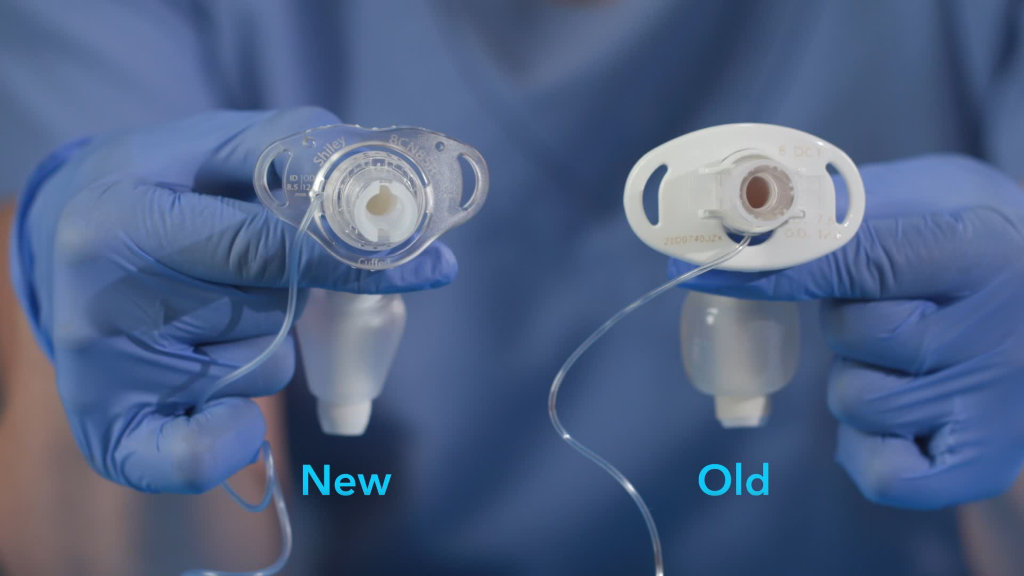

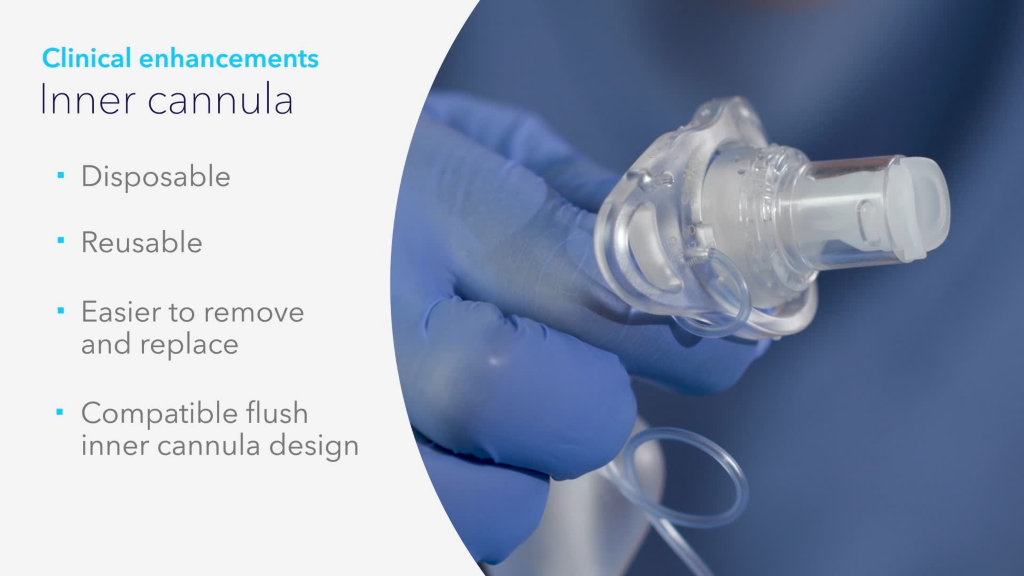

In-service videos

Shiley™ flex trach tubes H-sku in-service (20:36)

  1.  Internal benchtop testing results RE00127642 Rev A. Results reflect testing the Shiley™ Flexible adult tracheostomy tube with TaperGuard™ cuff, disposable inner cannula versus the Shiley™ DCT tracheostomy tube with disposable inner cannula at the same cuff pressure of 25 cmH2O.
  2. Maguire S, Haury F, Jew K. An in vitro comparison of tracheostomy tube cuffs. Med Devices (Auckl). 2015;21;8:185–192.

  1. Internal testing results 10115368 Rev A. Results reflect measurements taken for size 7 .5 Shiley™ Flexible adult tracheostomy tube compared to the  Shiley™ 6DCT tracheostomy tube at the same cuff pressure of 20 cmH2O.
  2. Based on internal benchtop testing results 10122514. Results reflect testing the Shiley™ flexible adult tracheostomy tube with TaperGuard™ cuff, disposable inner cannula versus the Shiley™ DCT tracheostomy tube with disposable inner cannula at the same cuff pressure of 25 cmH2O.
  3. Mullins JB, Templer JW, Kong J, Davis WE, Hinson J Jr. Airway resistance and work of breathing in tracheostomy tubes. Laryngoscope. 1993;103(12):1367–1372.
  4. Arditi E, Russo G, Pelosi P. Tracheostomy Tube. In: Servillo G, Pelosi P, eds. Percutaneous Tracheostomy in Critically Ill Patients. Springer; 2016:106.
