| Usable length 40 cm |
Usable length 80 cm |
Usable length 135 cm |
Balloon diameter (mm) | Balloon length (mm) | Recommended introducer sheath (Fr) | Nominal pressure (atm) | RBP (atm) |
|---|---|---|---|---|---|---|---|
| — | AB35W03020080 | AB35W03020135 | 3.0 | 20 | 5 | 10 | 20 |
| — | AB35W03030080 | AB35W03030135 | 3.0 | 30 | 5 | 10 | 20 |
| — | AB35W03040080 | AB35W03040135 | 3.0 | 40 | 5 | 10 | 20 |
| — | AB35W03060080 | AB35W03060135 | 3.0 | 60 | 5 | 10 | 20 |
| — | AB35W03080080 | AB35W03080135 | 3.0 | 80 | 5 | 10 | 20 |
| — | AB35W03100080 | AB35W03100135 | 3.0 | 100 | 5 | 10 | 20 |
| — | AB35W03120080 | AB35W03120135 | 3.0 | 120 | 5 | 10 | 20 |
| — | AB35W03150080 | AB35W03150135 | 3.0 | 150 | 5 | 10 | 20 |
| — | AB35W03200080 | AB35W03200135 | 3.0 | 200 | 5 | 10 | 20 |
| — | AB35W04020080 | AB35W04020135 | 4.0 | 20 | 5 | 10 | 20 |
| — | AB35W04030080 | AB35W04030135 | 4.0 | 30 | 5 | 10 | 20 |
| — | AB35W04040080 | AB35W04040135 | 4.0 | 40 | 5 | 10 | 20 |
| — | AB35W04060080 | AB35W04060135 | 4.0 | 60 | 5 | 10 | 20 |
| — | AB35W04080080 | AB35W04080135 | 4.0 | 80 | 5 | 10 | 20 |
| — | AB35W04100080 | AB35W04100135 | 4.0 | 100 | 5 | 10 | 20 |
| — | AB35W04120080 | AB35W04120135 | 4.0 | 120 | 5 | 10 | 20 |
| — | AB35W04150080 | AB35W04150135 | 4.0 | 150 | 5 | 10 | 20 |
| — | AB35W04200080 | AB35W04200135 | 4.0 | 200 | 5 | 10 | 20 |
| AB35W05020040 | AB35W05020080 | AB35W05020135 | 5.0 | 20 | 5 | 10 | 20 |
| AB35W05030040 | AB35W05030080 | AB35W05030135 | 5.0 | 30 | 5 | 10 | 20 |
| AB35W05040040 | AB35W05040080 | AB35W05040135 | 5.0 | 40 | 5 | 10 | 20 |
| AB35W05060040 | AB35W05060080 | AB35W05060135 | 5.0 | 60 | 5 | 10 | 20 |
| AB35W05080040 | AB35W05080080 | AB35W05080135 | 5.0 | 80 | 5 | 10 | 20 |
| — | AB35W05100080 | AB35W05100135 | 5.0 | 100 | 5 | 10 | 20 |
| AB35W05120040 | AB35W05120080 | AB35W05120135 | 5.0 | 120 | 5 | 10 | 16 |
| — | AB35W05150080 | AB35W05150135 | 5.0 | 150 | 5 | 10 | 16 |
| — | AB35W05200080 | AB35W05200135 | 5.0 | 200 | 5 | 10 | 16 |
| AB35W06020040 | AB35W06020080 | AB35W06020135 | 6.0 | 20 | 5 | 8 | 14 |
| — | AB35W06030080 | AB35W06030135 | 6.0 | 30 | 5 | 8 | 14 |
| AB35W06040040 | AB35W06040080 | AB35W06040135 | 6.0 | 40 | 5 | 8 | 14 |
| — | AB35W06060080 | AB35W06060135 | 6.0 | 60 | 5 | 8 | 14 |
| AB35W06080040 | AB35W06080080 | AB35W06080135 | 6.0 | 80 | 5 | 8 | 14 |
| — | AB35W06100080 | AB35W06100135 | 6.0 | 100 | 5 | 8 | 14 |
| AB35W06120040 | AB35W06120080 | AB35W06120135 | 6.0 | 120 | 5 | 8 | 12 |
| — | AB35W06150080 | AB35W06150135 | 6.0 | 150 | 5 | 8 | 12 |
| — | AB35W06200080 | AB35W06200135 | 6.0 | 200 | 6 | 8 | 11 |
| AB35W07020040 | AB35W07020080 | AB35W07020135 | 7.0 | 20 | 5 | 7 | 14 |
| — | AB35W07030080 | AB35W07030135 | 7.0 | 30 | 5 | 7 | 14 |
| AB35W07040040 | AB35W07040080 | AB35W07040135 | 7.0 | 40 | 5 | 7 | 14 |
| AB35W07060040 | AB35W07060080 | AB35W07060135 | 7.0 | 60 | 6 | 7 | 14 |
| — | AB35W07080080 | AB35W07080135 | 7.0 | 80 | 6 | 7 | 14 |
| — | AB35W07100080 | AB35W07100135 | 7.0 | 100 | 6 | 7 | 14 |
| — | AB35W07120080 | AB35W07120135 | 7.0 | 120 | 6 | 7 | 10 |
| — | AB35W07150080 | AB35W07150135 | 7.0 | 150 | 6 | 7 | 10 |
| — | AB35W07200080 | AB35W07200135 | 7.0 | 200 | 6 | 7 | 10 |
| AB35W08020040 | AB35W08020080 | AB35W08020135 | 8.0 | 20 | 6 | 7 | 14 |
| — | AB35W08030080 | AB35W08030135 | 8.0 | 30 | 6 | 7 | 14 |
| AB35W08040040 | AB35W08040080 | AB35W08040135 | 8.0 | 40 | 6 | 7 | 14 |
| AB35W08060040 | AB35W08060080 | AB35W08060135 | 8.0 | 60 | 6 | 7 | 14 |
| — | AB35W08080080 | AB35W08080135 | 8.0 | 80 | 6 | 7 | 14 |
| — | AB35W09020080 | AB35W09020135 | 9.0 | 20 | 6 | 7 | 12 |
| — | AB35W09030080 | AB35W09030135 | 9.0 | 30 | 6 | 7 | 12 |
| — | AB35W09040080 | AB35W09040135 | 9.0 | 40 | 6 | 7 | 12 |
| — | AB35W09060080 | AB35W09060135 | 9.0 | 60 | 6 | 7 | 12 |
| — | AB35W09080080 | AB35W09080135 | 9.0 | 80 | 6 | 7 | 12 |
| — | AB35W10020080 | AB35W10020135 | 10.0 | 20 | 6 | 7 | 11 |
| — | AB35W10030080 | AB35W10030135 | 10.0 | 30 | 6 | 7 | 11 |
| — | AB35W10040080 | AB35W10040135 | 10.0 | 40 | 6 | 7 | 11 |
| — | AB35W10060080 | AB35W10060135 | 10.0 | 60 | 7 | 7 | 11 |
| — | AB35W12020080 | AB35W12020135 | 12.0 | 20 | 7 | 7 | 10 |
| — | AB35W12040080 | AB35W12040135 | 12.0 | 40 | 7 | 7 | 10 |
| — | AB35W12060080 | AB35W12060135 | 12.0 | 60 | 7 | 7 | 10 |
Standard PTA balloons

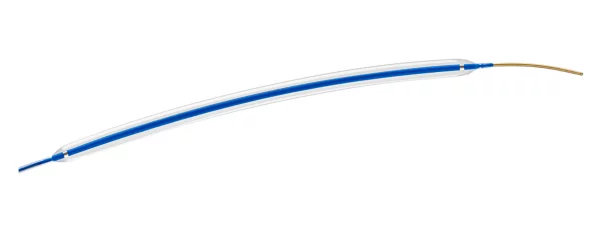

EverCross™ PTA catheter
<p>The EverCross™ PTA catheter is used to treat peripheral arterial disease (PAD) in many vessel sizes and lesion types.</p>
Product details
Flexible materials at the distal end of the catheter permit excellent tracking through tortuous anatomy.
Proprietary catheter coating sustains lubricity and reduces friction.
Robust shaft design delivers buckle-resistant pushability.
Bevel 360™ tip offers a smooth transition to the wire, and combined with a low-profile catheter, provides ease in crossing.
Ordering information
