Coronary balloons

NC Euphora™ noncompliant balloon dilatation catheter

Coronary balloons

NC Euphora™ noncompliant balloon dilatation catheter

The NC Euphora™ rapid exchange balloon dilatation catheter is a percutaneous transluminal coronary angioplasty (PTCA) rapid exchange system.

Ordering information

Contact a representative

Indications, Safety, and Warnings

Description

From collaboration to innovation

When it comes to controlled, high-pressure performance, the NC Euphora™ noncompliant balloon dilatation catheter has what you’re looking for:

High RBP up to 20 atm¹
Low-growth profile²
Superior deliverability²

In fact, we worked with nearly 2,000 interventional cardiologists and catheter lab professionals^3–6 to develop it — so you can choose it with confidence for your patients.

Features

Design advances were inspired by customer needs and insight.

We sought input from nearly 2,000 interventional cardiologists and catheter lab professionals at Medtronic-sponsored technology exchanges, advisory board meetings, scientific forums, training events, and peer-to-peer educational seminars.^3–6 Then, with specific design targets in mind, we deliberately developed each balloon component to exceed your expectations and complement your expertise.^4,5

Compliance data⁷

Pressure (atm)	Average balloon diameter (mm)
Pressure (atm)	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00	4.50	5.00
6	1.89	2.12	2.35	2.54	2.77	2.94	3.13	3.43	3.67	4.09	4.64
7	1.91	2.15	2.37	2.57	2.8	2.97	3.17	3.47	3.72	4.14	4.71
8	1.93	2.17	2.4	2.6	2.84	3.01	3.22	3.51	3.78	4.19	4.79
9	1.95	2.19	2.43	2.63	2.87	3.06	3.27	3.56	3.84	4.25	4.86
10	1.97	2.21	2.46	2.66	2.91	3.1	3.32	3.61	3.9	4.31	4.92
11	1.98	2.23	2.48	2.69	2.94	3.14	3.37	3.66	3.95	4.37	4.95
12	1.99	2.25	2.5	2.71	2.97	3.18	3.41	3.7	3.99	4.42	5
13	2	2.26	2.51	2.73	2.99	3.21	3.44	3.73	4.03	4.47	5.04
14	2.02	2.28	2.53	2.75	3.01	3.23	3.47	3.76	4.07	4.51	5.08
15	2.03	2.29	2.54	2.77	3.03	3.26	3.5	3.78	4.1	4.54	5.12
16	2.04	2.3	2.56	2.78	3.05	3.28	3.52	3.81	4.13	4.58	5.15
17	2.05	2.31	2.58	2.8	3.07	3.3	3.55	3.83	4.15	4.6	5.19
18	2.06	2.33	2.59	2.81	3.09	3.33	3.57	3.86	4.18	4.63	5.23
19	2.07	2.34	2.61	2.83	3.11	3.35	3.59	3.88	4.21	4.66	5.27
20	2.09	2.36	2.63	2.84	3.13	3.37	3.62	3.91	4.24	4.69	5.3
21	2.1	2.37	2.65	2.86	3.15	3.39	3.64	3.93	4.28	4.72	5.35
22	2.12	2.39	2.66	2.88	3.17	3.41	3.66	3.96	4.31	4.75	5.39
23	2.14	2.4	2.68	2.9	3.2	3.43	3.69	3.99	4.34	4.78	—
24	2.15	2.42	2.71	2.92	3.22	—	3.71	—	—	4.81	—
25	—	2.44	—	2.94	3.25	—	3.74	—	—	4.84	—
Nominal pressure		Rated burst pressure

Nominal pressure: the pressure at which the balloon reaches its labeled diameter
Rated burst pressure: the maximum pressure to which a balloon is designed to be inflated. Do not exceed.

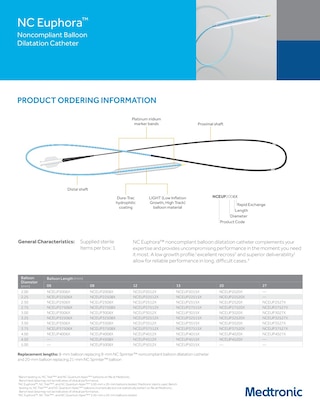

Ordering information

Balloon diameter (mm)	Balloon length (mm)
Balloon diameter (mm)	6	8	12	15	20	27
2.00	NCEUP2006X	NCEUP2008X	NCEUP2012X	NCEUP2015X	NCEUP2020X	—
2.25	NCEUP22506X	NCEUP22508X	NCEUP22512X	NCEUP22515X	NCEUP22520X	—
2.50	NCEUP2506X	NCEUP2508X	NCEUP2512X	NCEUP2515X	NCEUP2520X	NCEUP2527X
2.75	NCEUP27506X	NCEUP27508X	NCEUP27512X	NCEUP27515X	NCEUP27520X	NCEUP27527X
3.00	NCEUP3006X	NCEUP3008X	NCEUP3012X	NCEUP3015X	NCEUP3020X	NCEUP3027X
3.25	NCEUP32506X	NCEUP32508X	NCEUP32512X	NCEUP32515X	NCEUP32520X	NCEUP32527X
3.50	NCEUP3506X	NCEUP3508X	NCEUP3512X	NCEUP3515X	NCEUP3520X	NCEUP3527X
3.75	NCEUP37506X	NCEUP37508X	NCEUP37512X	NCEUP37515X	NCEUP37520X	NCEUP37527X
4.00	NCEUP4006X	NCEUP4008X	NCEUP4012X	NCEUP4015X	NCEUP4020X	NCEUP4027X
4.50	—	NCEUP4508X	NCEUP4512X	NCEUP4515X	NCEUP4520X	—
5.00	—	NCEUP5008X	NCEUP5012X	NCEUP5015X	—	—
