MedEd Bytes series:

MedEd Bytes is a video series that offers a quick and digestible learning format that can help solidify your understanding of different therapies leveraged in patient monitoring and respiratory interventions. In this series, we’ll cover topics such as capnography waveforms, the technology behind pulse oximetry, modes of ventilation, and more. To stay up to date with the series, please subscribe to our YouTube channel or start watching the series below.

Understanding capnography waveforms

Byte 1: Measuring capnography and pulse oximetry

Pulse oximetry monitors oxygenation while capnography monitors ventilation, and both monitoring systems provide important but different physiologic measurements.

01:08
YouTube

Byte 2: What is capnography?

Capnography monitors CO2 removal during breathing and provides a breath-by breath assessment of the patient’s ventilatory status. Although the numeric etCO2 value is important, the waveform is equally important.

01:37
YouTube

Byte 3: Technology overview

Traditional technologies such as colorimetric CO2 detectors, mainstream and sidestream sampling lines have certain limitations that can contribute to inaccurate readings. This can cause their use to be restricted with certain patient populations.

01:35
YouTube

Byte 4: Ventilation perfusion mismatching

The gradient, an indicator of V/Q status, is the difference between the arterial carbon dioxide partial pressure (PaCO2) and end-tidal carbon dioxide partial pressure (etCO2) values. We discuss the relationship between ventilation (V) and perfusion (Q), and what mismatching can look like.

02:59
YouTube

Byte 5: Normal capnography waveform

The capnography waveform depicts the concentration of CO2 in the breath and has a generally uniform square-like morphology with consistent frequency. In this video, we look at what normal respiratory rates and waveforms look like for healthy patients.

01:29
YouTube

Byte 6: Different phases in normal waveforms

We review the phases of a normal capnography waveform in detail: phase I, phase II, phase III, end-tidal CO2, and phase 0.

02:47
YouTube

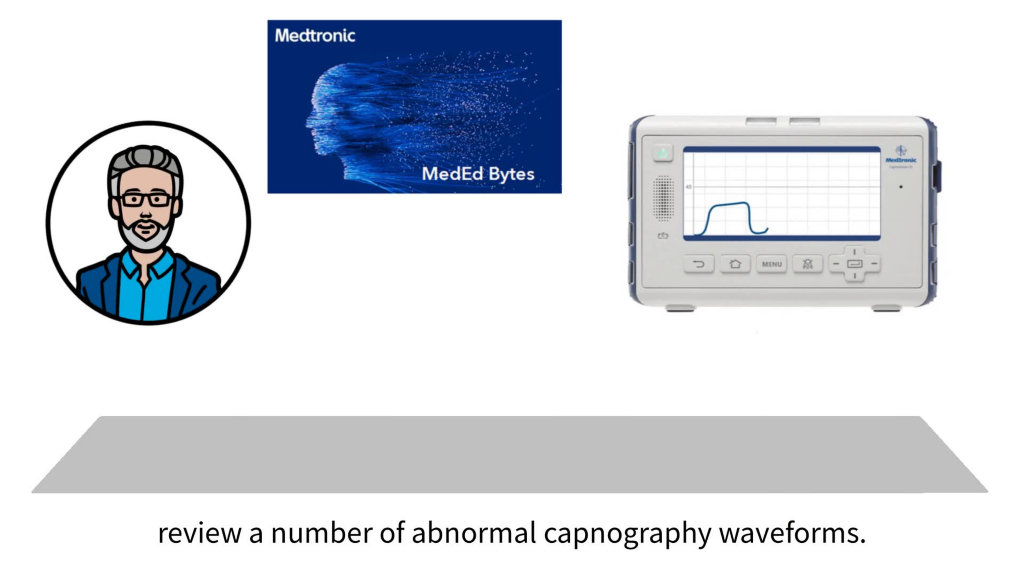

Byte 7: Apnea

Apnea is defined as no breath for 10 seconds or longer. It is central in nature with no respiratory effort or obstruction respiratory effort. Learn what the capnography waveform can look like in this scenario.

01:08
YouTube

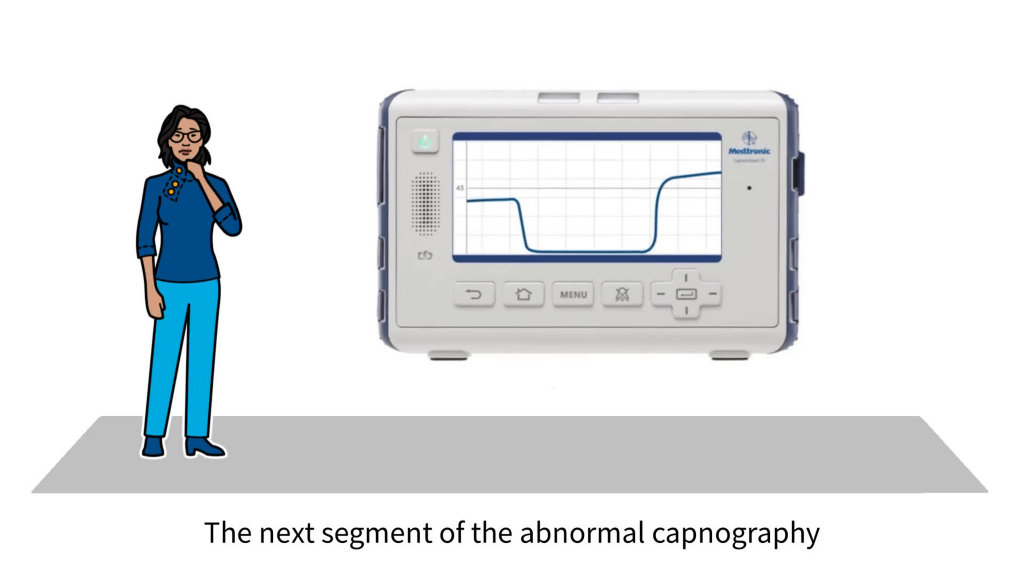

Byte 8: Hypoventilation

Hypoventilation occurs when there is build-up carbon dioxide because of insufficient elimination of the by-product. Learn what the capnography waveform can look like in this scenario.

01:45
YouTube

Byte 9: Hyperventilation

Hyperventilation occurs when there are low carbon dioxide levels resulting from excessive elimination through rapid, deep breathing or metabolic acidosis. Learn what the capnography waveform can look like in this scenario.

01:40
YouTube

Byte 10: Return of spontaneous circulation (ROSC)

During cardiorespiratory arrest, there is a massive systemic buildup of carbon dioxide. Return of spontaneous circulation results in a rapid and abrupt influx of CO2. Learn what the capnography waveform can look like in this scenario.

01:10
YouTube

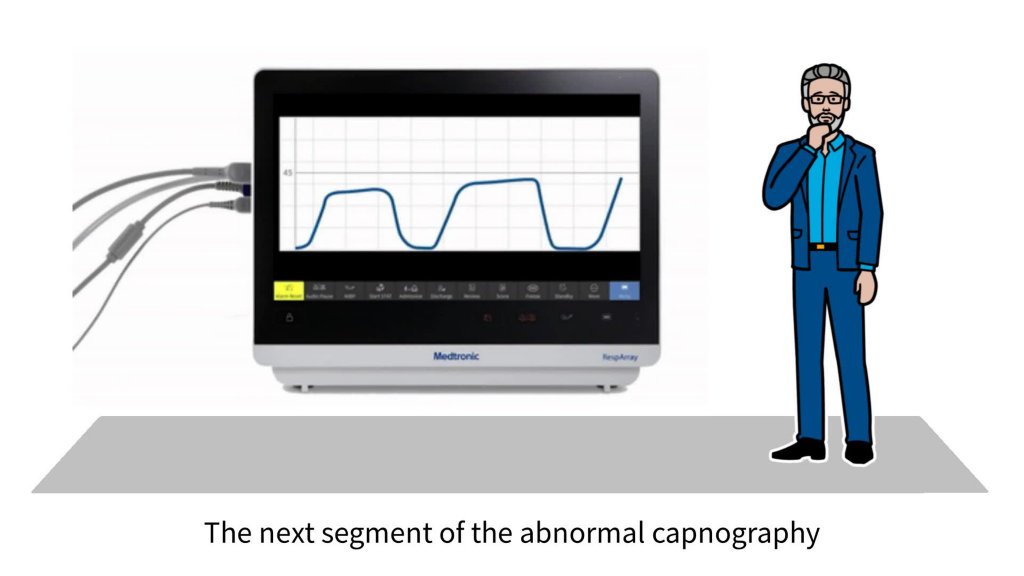

Byte 11: Bradypnea with hypercarbia

During bradypnea or hypercarbia, there is the presence of an abnormally high carbon dioxide level in the circulating blood. Respiratory rate may vary but generally slow and below a rate of 12 breaths per minute, representing bradypnea. Learn what the capnography waveform can look like in this scenario.

01:25
YouTube

Byte 12: Rebreathing of CO2

During rebreathing of CO2, the breathing pattern or rhythm usually normal and occurs approximately once every 3 to 5 seconds. Learn what the capnography waveform can look like in this scenario.

01:33
YouTube

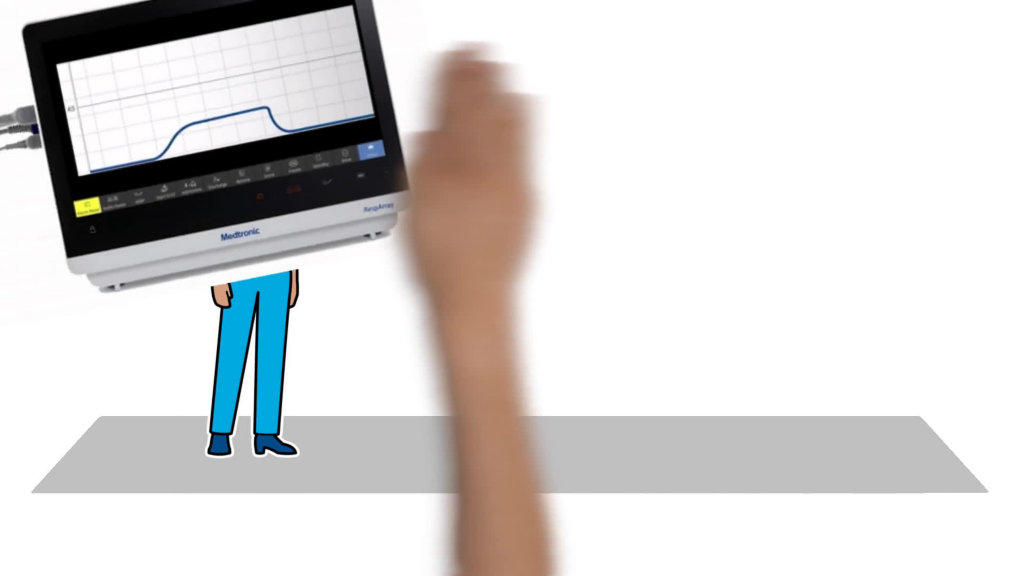

Byte 13: Hypopnea with bradypnea

Hypopnea is defined as shallow breathing less than 0.5 liters in an adult and bradypnea is defined as low respiratory rate less than 12 breaths per minute. Learn what the capnography waveform can look like in this scenario.

01:22
YouTube

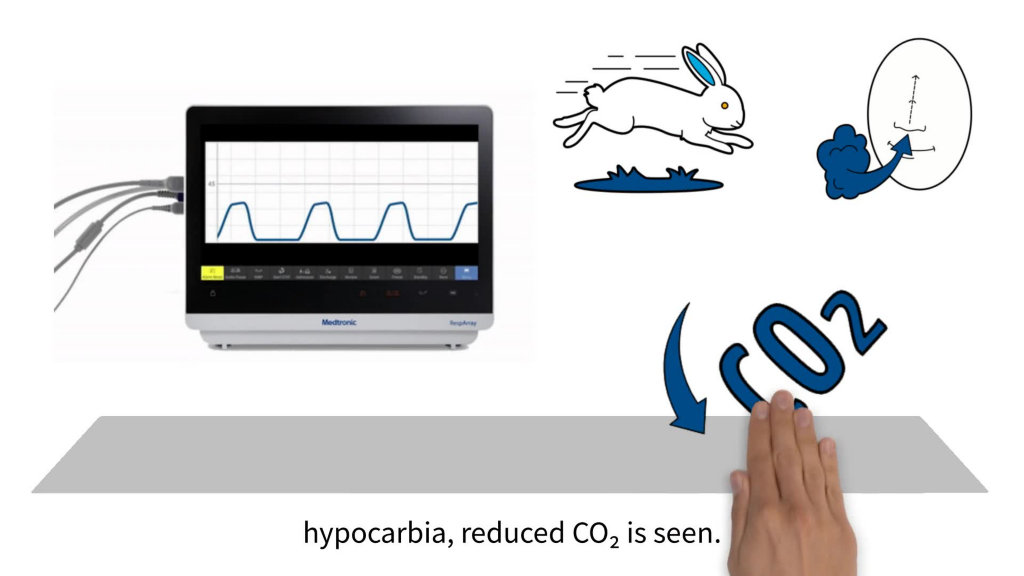

Byte 14: Tachypnea with hypocarbia

In tachypnea (abnormally rapid breathing) with hypocarbia, reduced CO2 is seen.  Respiratory rate may vary but is generally rapid above a rate of 20 breathes per minute. Learn what the capnography waveform can look like in this scenario.

01:23
YouTube

Byte 15: Lower airway obstruction — bronchospasm

In cases of lower airway obstruction resulting from bronchospasm, respiratory rate may vary, but it is generally greater than 20 breaths per minute and is often accompanied by a reduced tidal volume. Learn what the capnography waveform can look like in this scenario.

01:26
YouTube

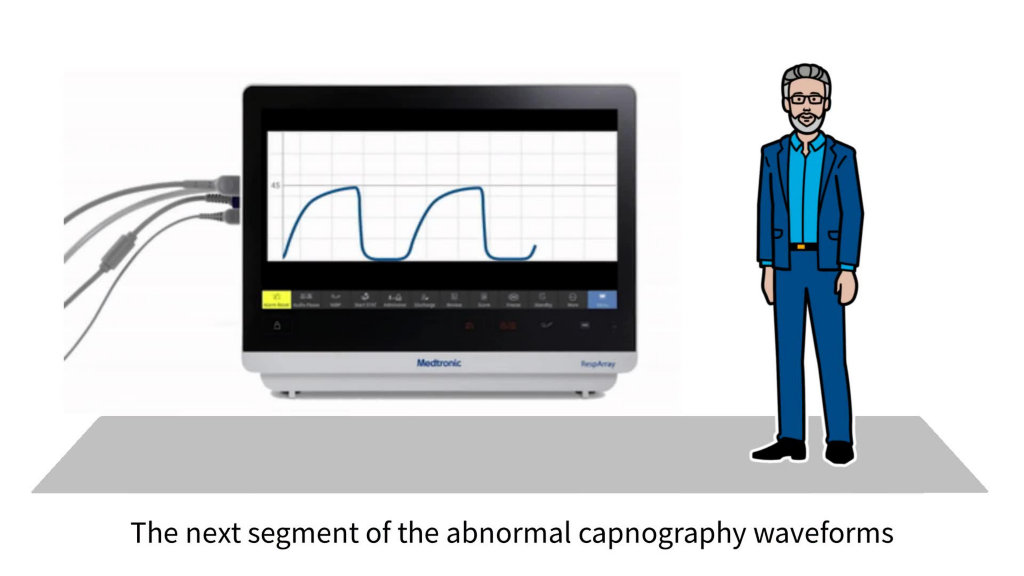

Byte 16: Asthma, COPD, and emphysema

With asthma, emphysema, or chronic obstructive pulmonary disease (COPD), respiratory rate may vary. Generally it is greater than 20 breaths per minute and often accompanied by a reduced tidal volume and wheezes or rhonchi may be present. Learn more about how these factors can impact capnography waveforms.

01:23
YouTube

Byte 17: Curare cleft

This capnogram is rarely seen, and it occurs in mechanically ventilated patients who make an effort to breath. Learn more about curare cleft and how it can impact capnography waveforms.

01:10
YouTube
