Ordering number |
Sub-CFN |
Product name |
Package |
AFR-00013 |
NA |
System cart |
1 each |
Surgical energy systems

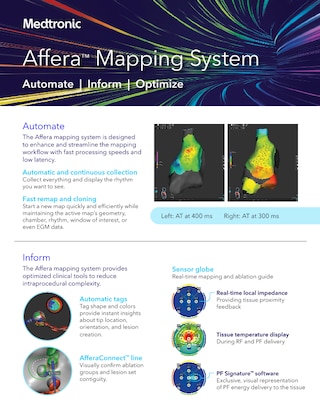

Affera™ mapping system
<p>The Affera™ mapping system with Prism-1 software is designed to automate, inform, and optimize the ablation procedure using innovative clinical tools.</p>
Features
Automate
Automatic and continuous collection
Collect everything; display the rhythm you want to see.
Fast remap and cloning
Start a new map quickly and efficiently while maintaining the active map‘s geometry, chamber, rhythm, window of interest, or even EGM data.
Left: AT at 400 ms Right: AT at 300 ms
Inform
Explore multiple standout tools from Affera™ designed to simplify intraprocedural complexity.
Automatic tags
Tag shape and colors provide instant insights about tip location, orientation, and lesion creation.
AfferaConnect™ line
Visually confirm ablation groups and lesion set contiguity.
Sensor globe and temperature globe
Real-time mapping and ablation guide
Local impedance feedback
Local impedance indicators define catheter tip to tissue proximity.
Optimize
Vein mode
Designed to delineate complex regions of the heart, which may reduce the use of fluoroscopy1,2
Propagation arrow
Assess wavefront directionality
for every beat before, during, and after ablation
to enhance clinical decision-making.
Integrated stimulator
Expedite differential pacing workflows for assessing therapeutic outcomes.
Specifications
Capital components
- HexaGen™ RF generator
Temperature-controlled RF for the creation of wide-area focal lesions - HexaPulse™ PF generator
Unipolar, biphasic PF energy delivery - HexaMap™ catheter interface unit (CIU)
Magnetic navigation and map acquisition with compatible catheters displays and records intracardiac electrograms while providing pacing - HexaFlow™ irrigation pump
Compatible with single-use tubing set and integrated IV pole on system cart
Ordering information
Resources
Related links
Educational resources on Medtronic Academy
Access detailed product information, including spec sheets, videos, and presentations.
Related products
-
PulseSelect™ pulsed field ablation systemThe PulseSelect™ pulsed field ablation (PFA) system enables both mapping and precise lesion delivery using biphasic waveform optimization.
-
Sphere-9™ catheterThe Sphere-9™ mapping and ablation catheter provides mapping and dual-energy ablation options including radiofrequency (RF) and pulsed field (PF) energies.
- Anter, E., Mansour, M., Nair, D.G. et al. Dual-energy lattice-tip ablation system for persistent atrial fibrillation: a randomized trial. Nat Med. 2024;30(8):2303–2310. doi: 10.1038/s41591-024-03022-6.
- Affera™ mapping system software manual M050220C001 (Agile). 2024.
