RF ablation systems

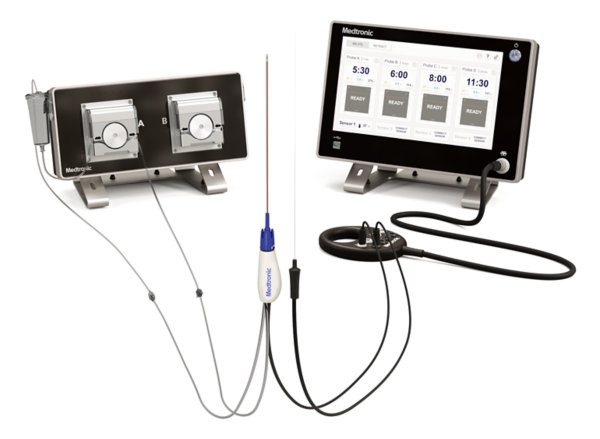

OsteoCool™ 2.0 bone tumor ablation system

<p><sup></sup>The OsteoCool™ 2.0 system is an internally-cooled radiofrequency (RF) ablation system with four-probe capability to palliatively treat painful bone tumors.</p>

Ordering information
Contact a representative

Features

Independent channel control allows you to start and stop ablation on each channel individually, while internally-cooled probes reduce the risk of charring without introducing ionic solutions into the ablation.

With the widest selection of probe sizes2–4 and OsteoMap™ technology, OsteoCool™ 2.0 provides consistent, predictable ablation zones with the flexibility to tailor the ablation zone to your patients‘ needs. Backed by OPuS One,‡,5 the largest study of RF ablation in bone metastases, the OsteoCool™ 2.0 RF ablation system gives you the control to deliver powerful, predictable, and proven pain relief.

Simultaneous ablation allows two probes to be positioned closely enough to produce large ablation zones.

Image courtesy of Dr. Jason Levy

OsteoCool™ hard bone access kit

The Medtronic bone access tool kit includes a tapered cannula, sharper trocar, and enhanced drill design — a system that allows improved access to sclerotic bone. These tools are compatible with the existing OsteoCool™ RF ablation probes.

The tools:

  • Offer faster access to sclerotic bone†,6
  • Reduce the force required to advance the tool†,6
  • Are versatile for use for all cases
Hard bone access tools used with the Osteocool™ RF ablation system.

Ordering information

OsteoCool™ 2.0 RF ablation capital equipment

Item Number Description
OC01-100 OsteoCool™ 2.0 RF generator
OC02-100 OsteoCool™ 2.0 RF pump
OC04-100 OsteoCool™ 2.0 connector hub

OsteoCool™ 2.0 carts and stands

Item Number Description
OCA01-100 OsteoCool™ 2.0 cart stand

OsteoCool™ RF ablation probe kits

Item Number Description Gauge
OCP107 OsteoCool™ RF probe kit — 7 mm  17
OCP110 OsteoCool™ RF probe kit — 10 mm 17
OCP115 OsteoCool™ RF probe kit — 15 mm 17
OCP120 OsteoCool™ RF probe kit — 20 mm 17
OCP207 OsteoCool™ RF probe kit — 7 mm (×2) 17
OCP210 OsteoCool™ RF dual probe kit — 10 mm (×2) 17
OCP215 OsteoCool™ RF dual probe kit — 15 mm (×2) 17
OCP220 OsteoCool™ RF dual probe kit — 20 mm (×2) 17

OsteoCool™ bone access kits

Item Number Description Gauge
OCN002 OsteoCool™ bone access kit 10
OCN002HB OsteoCool™ hard bone access kit 10
OCN003 OsteoCool™ bone access kit 8
OCN004 OsteoCool™ bone access kit 10
OCN005 OsteoCool™ bone access kit 13

OsteoCool™ temperature monitoring

Item Number Description
OCN001 OsteoCool™ ITC thermocouple — 180 mm

Resources

TM* Third-party brands are trademarks of their respective owners.

† Bench testing may not be indicative of clinical results.

‡ Original OsteoCool™ used in OPuS One study.

  1. Based on internal data: ETR 30101200, OsteoCool™ 2.0 lesion validation test report, 20 samples. 2023.
  2. Clarivate Interventional Oncology Devices Market Insights United States report, December 2022.
  3. Stryker OptaBlate™* RF generator system IFU 700001075365 Rev-AC.
  4. Merit MetaSTAR™* RF generator IFU 403321001_001.

  1. OPuS One. Levy J, David E, Hopkins T, et al. Radiofrequency ablation provides rapid and durable pain relief for the palliative treatment of lytic bone metastases independent of radiation therapy: Final results from the OsteoCool™ tumor ablation post-market study. Cardiovasc Intervent Radiol. 2023;46(5):600–609.
  2. Medtronic data on file: ETR 31101395, Repetitive impact and axial compression bench testing, N=6 of each tool tested. January 2023.
