RF ablation endovenous catheters
RF ablation endovenous catheters

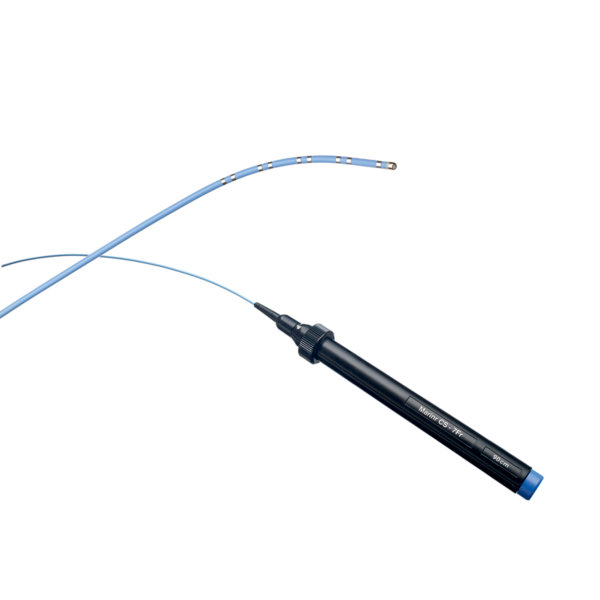

The Marinr™ CS decapolar electrode catheter is a sterile, single-use catheter designed to map and pace varied cardiac anatomies.
The Marinr™ CS catheter is a steerable coronary sinus catheter that features a deflectable tip with a 55 mm reach for advancement into the coronary sinus. It has a 7 Fr braided proximal shaft and 10 electrodes which offer a range of mapping locations.
| Item number | Shaft size (Fr) | Curve reach at 90° (mm) | Distal electrode (mm) | Number of electrodes | Electrode spacing (mm) | Usable length (cm) |
|---|---|---|---|---|---|---|
| 043302M | 7 | 55 | 2 | 10 | 2 / 2 / 2 | 90 |
| 043325M | 7 | 55 | 2 | 10 | 2 / 5 / 2 | 90 |
| 043328M | 7 | 55 | 2 | 10 | 2 / 8 / 2 | 90 |
