DiamondTemp™ ablation catheter

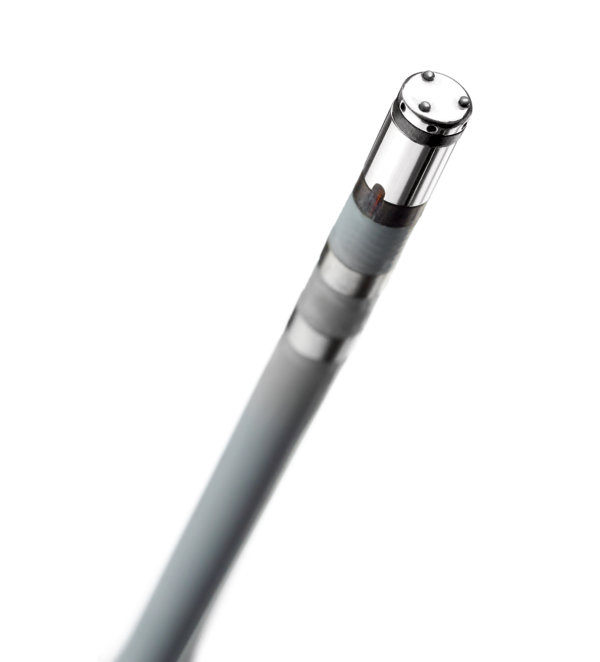

<p>The DiamondTemp™&nbsp;ablation catheter is an open-irrigated radiofrequency (RF) ablation catheter used for cardiac ablation to treat atrial fibrillation.</p>

Ordering information
Contact a representative

Features

The next generation of radiofrequency (RF) ablation

Exclusive diamond-enabled tip tooling

The 8.0 Fr ablation catheter includes industrial diamonds, enabling rapid cooling due to their high thermal diffusivity property. The catheter tip is comprised of platinum-iridium and diamond components. A network of chemical vapor deposit (CVD) industrial diamonds acts as heat-shunting material.

  1. Distal diamond
  2. Center diamond
  3. Proximal diamond

Exclusive diamond shunt network enables rapid catheter tip cooling and a low-flow irrigation rate of 8 mL/min.2

  • Thermal energy transfer is 200 to 400 times faster with CVD diamond versus platinum-iridium.3,4
  • Extremely high thermal diffusivity allows quick conduction of thermal energy through the diamond shunt network, enabling a low-flow irrigation rate and electrogram (EGM) signal clarity.2
The DiamondTemp™ ablation catheter exclusive diamond shunt network enables rapid catheter tip cooling and low flow irrigation rate of 8 ml/minute.

Real-time temperature-sensing technology

Temperature provides direct feedback on lesion creation. Irreversible tissue damage is created at temperatures > 50 C.5

  • The DiamondTemp™ ablation catheter runs in temperature-control mode.
  • RealTemp™ drives thermocouple readings by the generator 50 times per second and automatically adjusts the power to the ablation set temperature.
  • A new study shows that through operation in temperature control mode, the level of applied contact force does not influence lesion size for durations between 5 to 15 seconds.6
The DiamondTemp™ ablation system includes real-time temperature sensing technology, precise location guidance, and diamond-enabled tip cooling as a differentiated design.

Precise location guidance with localized EGMS

A high-resolution electrode (HRE) at the catheter tip allows for the recording of highly localized signals at the center of ablation with minimal far-field artifact.2

Conventional electrodes

Bipolar mapping/pacing

The conventional RF catheter is at the center of mapping and center of ablation.

DiamondTemp™ hi-res electrodes

Bipolar mapping/pacing

The DiamondTemp™ ablation system catheter has a high-resolution electrode at the catheter tip, allowing the ability to record highly localized signals at the center of ablation with minimal far-field artifact.

Testimonials

Watch as four experienced EPs share how the DiamondTemp™ ablation system uses direct tissue surface temperature measurement to create effective lesions.

Discover the DiamondTemp™ difference (04:05)

Specifications

The 8.0 Fr open-irrigated catheter features a 4.1 mm tip segment consisting of six externally placed temperature-sensing thermocouples, a dual composite tip electrode, two ring electrodes, and six irrigation ports.

Includes customized offerings:

  • Small and large curve configurations
  • Unidirectional and bidirectional models
Download specifications (open in new window)
This is an illustration of the DiamondTemp™ ablation system catheter with callouts highlighting its features.
  1. 2.0 mm
  2. 3.5 mm
  3. 4.1 mm
  4. 3x distal thermocouples
  5. 6x irrigation ports
  6. Distal RF electrode — 0.6 mm
  7. Distal diamond — 0.5 mm
  8. Proximal RF electrode — 3.0 mm
  9. 3x proximal thermocouples
  10. Proximal diamond
  11. Distal ring electrode
  12. Proximal ring electrode

Ordering information

Item number Description
CEDT100S Unidirectional catheter small curve
CEDT200L Unidirectional catheter large curve
CEDTB300S Bidirectional catheter small curve
CEDTB400L Bidirectional catheter large curve
