Convective air warming systems

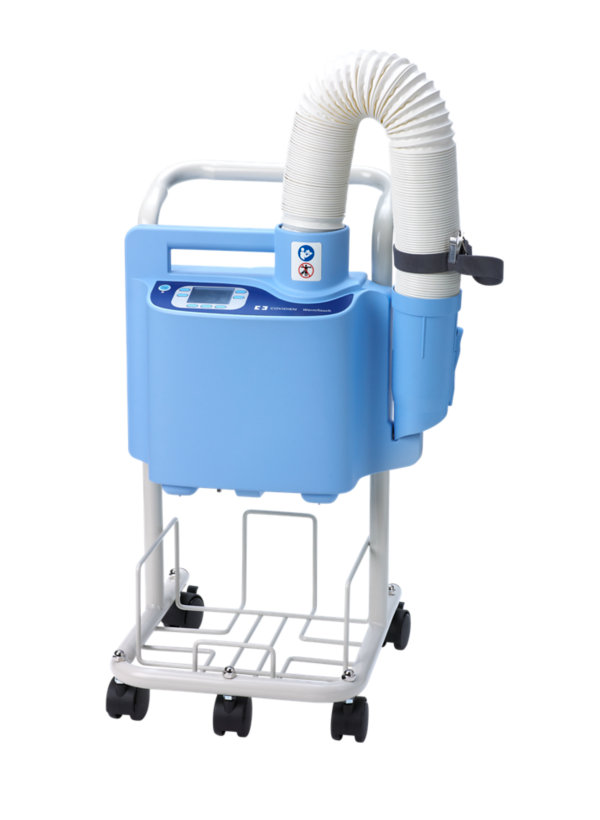

WarmTouch™ WT 6000 warming unit

<p>The WarmTouch™ WT 6000 warming unit comes with an intuitive screen showing the temperature and status of each of the five temperature settings.</p>

Ordering information
Contact a representative

Features

  • Easy to use — a new, intuitive LCD screen and menu function providing all information at a glance
  • Easy to control — five different settings, including ambient and boost, are offered for more flexibility and precision
  • Easy to handle — lightweight, making it easy to transport and attach the unit to a cart, bed rail, or an IV pole
  • Easy to service — onscreen filter expiration warning, making it easy to maintain and service the unit

Specifications

Warming unit
Size 24 in x 17 in x 12 in (60 cm x 43 cm x 30 cm)
(hose fully collapsed, nozzle in storage position on unit)
Weight with power cord 5.2 kg (11.5 lbs)
Transport cart (optional)
Weight 3.1 kg (6.8 lbs)
Height 67.1 cm (26.4 in)
Width 32.3 cm (12.7 in)
Depth 38.6 cm (15.2 in)
Electrical requirements environmental
Power requirements 100 to 240 V AC
Maximum current at 100 V = 8 A
Maximum current at 240 V = 5 A
Input frequency 50/60 Hz ±1 Hz
Fuse (x2) Littlefuse (mfr.) 0218010; 250 V, 10 A
Temperature 18 C to 28 C (64.4 F to 82.4 F)
Performance specifications
Maximum contact surface temperature 44.1 C (111.4 F)
Average time for contact surface temperature to rise from 23 C ±2 C to 37 C 6 minutes
Average time for temperature of air exiting the hose to rise from 23 C ±2 C to 37 C < 1 minute
Accuracy of displayed temperature ±1.0 C (air entering hose)
Automatic temperature step down (boost to high temperature) After 45 minutes of continuous use, blower will step down from the boost to high setting.
Thermal protection threshold Thermostat (internal) 49 C to 55 C (120 F to 131 F)
Average alarm level 56 dB at 1 meter

Ordering information

Item number Description Units per box
5016000 WarmTouch™ WT 6000 warming unit 1
5022900 WarmTouch™ Cart 1
