Peripheral embolization products

Concerto™ detachable coil system

The Concerto™ Helix and 3D detachable coil systems offer helical and complex options for peripheral embolization.

Ordering information
Contact a representative

Features

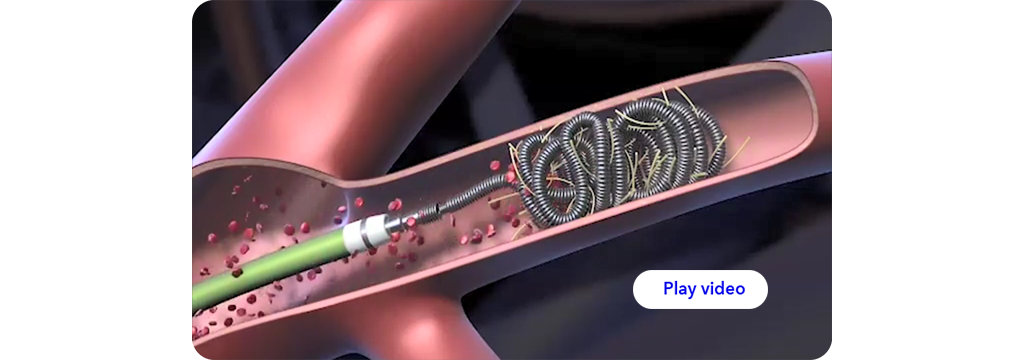

Concerto™ coils controlled delivery animation

Watch the Concerto™ detachable coil systems in action. (2:00)

Indications

The Concerto™ detachable coil system is indicated for arterial and venous embolizations in the peripheral vasculature.

Product details

Treat more patients.

  • Treat multiple anatomies with the combination of complex and helical coils.
  • Smoothly reach distal and challenging vessels thanks to the coil softness.1

Treat them safely.

  • The detachment system has a 99.7% success rate.1
  • The micro catheter kickback is minimal with a soft distal pusher and 360° rotation of ball-and-socket design.1

Treat them faster.

Fibers reduce the occlusion time, enhancing the mechanical action of bare coils.2

  • 80% increase in peak thrombin production†,2
  • 241% higher rate of thrombin†,2
This image shows the 360° rotation of ball-and-socket design in the Concerto™ detachment system.

80%

increase in peak thrombin production†,2

241%

higher rate of thrombin†,2

Coil thickness

Coil thickness or primary wind increases with coil diameter.

View this diagram to see how Concerto coil thickness or primary wind increases with coil diameter.

Case studies

Showcase a collection of cases for peripheral embolization solutions.

This interactive experience allows you to browse through the anatomy and review real case studies from experienced physicians. Get started and see the Concerto™ coils in action.

Start the experience (open in new window)
This is an image of the human anatomy showing the peripheral vascular system with navy blue squares over treatment areas.

Model specifications

Concerto™ Helix detachable coil system

Soft coil with helical shape for packing

The Concerto Helix detachable coil is a soft coil with a helical shape for packing.

Concerto™ 3D detachable coil system

Conformable and stable coil with complex shape for framing

The Concerto 3D detachable coil is a conformable and stable coil with a complex shape for framing.
Download Concerto™ specifications (open in new window)

Ordering information

Item number Description Diameter (mm) Length (cm) Shape Minimum micro catheter compatability (in)
NV-2-4-Helix Concerto™ nylon helical 2 4 Helix 0.0165
NV-2-6-Helix Concerto™ nylon helical 2 6 Helix 0.0165
NV-2-8-Helix Concerto™ nylon helical 2 8 Helix 0.0165
NV-3-4-Helix Concerto™ nylon helical 3 4 Helix 0.0165
NV-3-8-Helix Concerto™ nylon helical 3 8 Helix 0.0165
NV-4-8-Helix Concerto™ nylon helical 4 8 Helix 0.0165
NV-4-10-Helix Concerto™ nylon helical 4 10 Helix 0.0165
NV-5-15-Helix Concerto™ nylon helical 5 15 Helix 0.021
NV-5-20-Helix Concerto™ nylon helical 5 20 Helix 0.021
NV-6-20-Helix Concerto™ nylon helical 6 20 Helix 0.021
NV-7-30-Helix Concerto™ nylon helical 7 30 Helix 0.021
NV-8-30-Helix Concerto™ nylon helical 8 30 Helix 0.021
NV-9-30-Helix Concerto™ nylon helical 9 30 Helix 0.021
NV-10-30-Helix Concerto™ nylon helical 10 30 Helix 0.021
PV-12-30-Helix Concerto™ PGLA helical 12 30 Helix 0.021
PV-14-30-Helix Concerto™ PGLA helical 14 30 Helix 0.021
PV-16-40-Helix Concerto™ PGLA helical 16 40 Helix 0.021
PV-18-40-Helix Concerto™ PGLA helical 18 40 Helix 0.021
PV-20-50-Helix Concerto™ PGLA helical 20 50 Helix 0.021
PV-2-2-3D Concerto™ PGLA 3D 2 2 3-D 0.0165
PV-2-4-3D Concerto™ PGLA 3D 2 4 3-D 0.0165
PV-2-6-3D Concerto™ PGLA 3D 2 6 3-D 0.0165
PV-3-4-3D Concerto™ PGLA 3D 3 4 3-D 0.0165
PV-3-6-3D Concerto™ PGLA 3D 3 6 3-D 0.0165
PV-3-8-3D Concerto™ PGLA 3D 3 8 3-D 0.0165
PV-4-8-3D Concerto™ PGLA 3D 4 8 3-D 0.0165
PV-4-10-3D Concerto™ PGLA 3D 4 10 3-D 0.0165
PV-4-12-3D Concerto™ PGLA 3D 4 12 3-D 0.0165
PV-5-15-3D Concerto™ PGLA 3D 5 15 3-D 0.0165
PV-6-20-3D Concerto™ PGLA 3D 6 20 3-D 0.0165
PV-7-30-3D Concerto™ PGLA 3D 7 30 3-D 0.0165
PV-8-30-3D Concerto™ PGLA 3D 8 30 3-D 0.0165
PV-9-30-3D Concerto™ PGLA 3D 9 30 3-D 0.0165
PV-10-30-3D Concerto™ PGLA 3D 10 30 3-D 0.0165
PV-12-40-3D Concerto™ PGLA 3D 12 40 3-D 0.021
PV-14-40-3D Concerto™ PGLA 3D 14 40 3-D 0.021
PV-16-40-3D Concerto™ PGLA 3D 16 40 3-D 0.021
PV-18-40-3D Concerto™ PGLA 3D 18 40 3-D 0.021



Item number Description
ID-1-5 Instant Detacher

Related links

† Compared to bare coils. Percentages are calculated from the average of PGLA and nylon fibered coils.

  1. Test data on file at Medtronic. Bench test results may not be indicative of clinical performance.
  2. Girdhar G, Read M, Sohn J, Shah C, Shrivastava S. In-vitro thrombogenicity assessment of polymer filament modified and native platinum embolic coils. J Neurol Sci. 2014;339(1-2):97–101.
