Chronic total occlusion devices
Enteer™ re-entry system
The Enteer™ re-entry system facilitates placement of balloon dilatation catheters or other intravascular devices during percutaneous transluminal angioplasty.
Features
Design of Enteer™ re-entry system
Over-the-wire (OTW) 0.014” and 0.018” guidewire compatibility allows for flexibility during a case and minimizes guidewire exchanges.
With three offerings, the 28° Enteer™ guidewires are designed to find the Enteer™ catheter exit port and re-enter true lumen.
When inflated, the flat shaped balloon self-orients toward the true lumen within the subintimal space.
180° and offset exit ports on each side of device allow the Enteer™ guidewire to re-enter the correct port into the true lumen.
Targeting true lumen with Enteer™ re-entry system

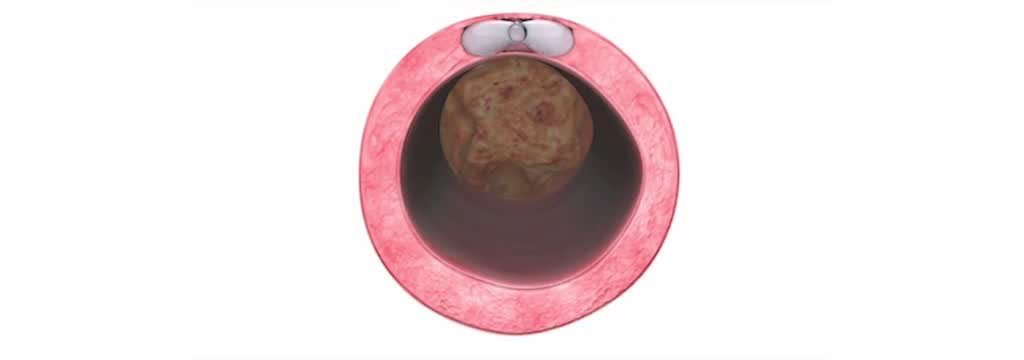

Enteer™ animation - (00:59)
See how the Enteer™ system enables the physician to reliably target the true lumen from the subintimal channel above or below the knee for CTO crossing.
Ordering information
| Item number | Description | Balloon size (W × H × L mm) |
Working length (cm) |
Guidewire compatibility (in) |
Crossing profile (max in) |
Sheath compatibility (Fr) |
|---|---|---|---|---|---|---|
| ENB-375-20-135 | ATK | 3.75 × 1.5 × 20 | 135 | ≤ 0.018 | 0.066 | 5 |
| ENB-275-20-150 | BTK | 2.75 × 1.0 × 20 | 150 | ≤ 0.018 | 0.066 | 5 |
Enteer™ re-entry guidewire
| Item number | Description | Diameter (in) | Length (cm) | Tip reach (mm) |
|---|---|---|---|---|
| ENW-FX-014-300 | Flexible | 0.014 | 300 | 1.5 |
| ENW-SD-014-300 | Standard | 0.014 | 300 | 1.5 |
| ENW-SF-014-300 | Stiff | 0.014 | 300 | 2.5 |
