Temporary pacemakers

Medtronic dual-chamber temporary pacemaker

<p>The Medtronic dual-chamber temporary pacemaker is intended for use with a pacemaker lead system for temporary dual-chamber pacing.</p>

Ordering information

Contact a representative

Indications, Safety, and WarningsIndications for useThe Medtronic Model 5392 dual-chamber temporary pacemaker is intended to be used in conjunction with a cardiac pacing lead system for temporary single- or dual-chamber pacing in a clinical environment by trained personnel. The temporary pacemaker can be used where short-term demand (synchronous) or asynchronous pacing is indicated for therapeutic, prophylactic, or diagnostic purposes. The temporary pacemaker must be used in an environment where the patient is monitored continuously to ensure that it is operating properly and delivering appropriate therapy to the patient. ContraindicationsThere are no known contraindications to the use of temporary pacing as a means to control the heart rate. The patient’s age and medical condition, however, may dictate the type of temporary pacemaker and lead system used by the physician. Pacing modes which allow sensing in the atrium to trigger a ventricular response are contraindicated in the presence of rapid atrial arrhythmias such as atrial fibrillation or atrial flutter. Atrial pacing is ineffective in the presence of atrial fibrillation or flutter. Single-chamber atrial pacing is contraindicated in the presence of AV conduction disorders. Asynchronous pacing is contraindicated in the presence of intrinsic cardiac rhythms. Atrial high-rate burst pacing therapy is intended for use in the atrium only. High-rate burst pacing in the ventricle may result in life-threatening arrhythmias. The temporary pacemaker is MR Unsafe.Warnings/precautionsMonitor the patient continuously while the temporary pacemaker is in use to ensure it is operating properly and delivering appropriate therapy to the patient. Electrocardiogram (ECG) monitoring should be in use and defibrillating equipment should be placed on standby and be kept immediately available during pacing lead insertion, pulse generator connection and adjustment, measurements of stimulation thresholds or sensed potentials, and application of antitachycardia burst therapy.Use of high rates in the atrium may result in accidental conduction to the ventricle. Defibrillation equipment should be kept immediately available during high-rate pacing. Operational failure of the temporary pacemaker can occur as the result of battery depletion, mishandling, or random component failure.Complications related to the use of temporary external pacemakers such as the Model 5392 include, but are not limited to, asystole following abrupt cessation of pacing, inhibition, and reversion. Potential complications related to the use of pacing lead systems with the Model 5392 include, but are not limited to, myocardial irritability resulting in fibrillation, infarction, pericarditis, rejection, muscle and nerve stimulation, and infection. Complication related to inhibition or reversion of the pacemaker in the presence of strong electromagnetic interference can occur.Whenever possible, for the safety of the patient, disconnect the temporary pacemaker from the implanted lead system before defibrillating or cardioverting. Excessive defibrillation energy can damage the temporary pacemaker. This can result in a large current flowing through the implanted lead system and temporary pacemaker, which could reduce intended defibrillation energy delivered to the patient or cause myocardial damage.A lead with extension cable constitutes a direct, low-resistance current path to the myocardium. During connection and testing procedures, only battery-powered instrumentation should be used. Extreme caution must be taken to properly ground all line-powered equipment used in the vicinity of the patient. Electrosurgical units can cause tachyarrhythmias by inducing current on the leads. Improper connection, displacement or fracture of leads or cables may result in pacemaker system failure. Inspect leads and cables for damage before each use. The pacing lead system may cease to function at any time due to improper connections or lead-related problems such as displacement or fracture.Do not modify the temporary pacemaker. Modifications could impact the temporary pacemaker effectiveness and adversely affect patient safety.CautionFederal law (United States) restricts these devices to sale by or on the order of a physician.MAJ_82583

History of external pacing leadership

60+ years of battery-powered temporary external pacemaker experience

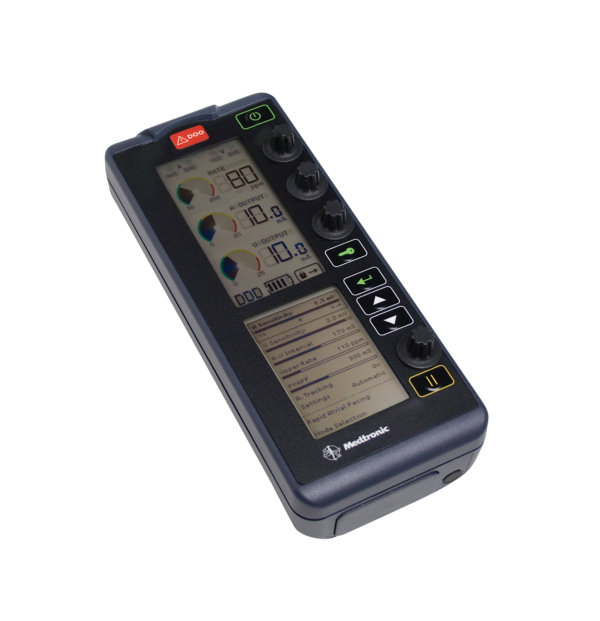

Dual-chamber temporary external pacemaker — Model 5392 

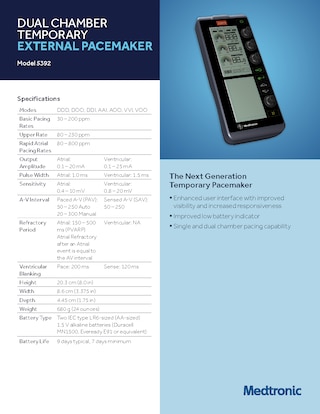

The dual-chamber model 5392 is the next-generation temporary pacemaker with both single- and dual-chamber pacing capability. It has an enhanced user interface with improved visibility and features an improved low-battery indicator.

Ordering information

Medtronic dual-chamber temporary pacemaker

Item number	Weight (g)	Dimensions (cm)	Battery
5392	680	20.3 × 8.6 × 4.45	Two IEC type LR6-sized (AA-sized) 1.5 V alkaline batteries

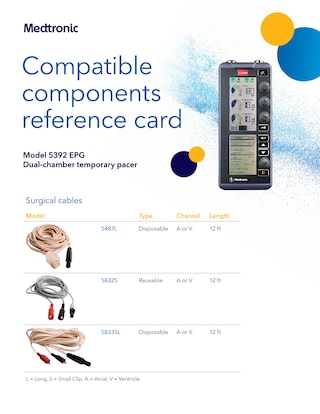

Surgical cables

Model	Type	Channel	Length (ft)
5487L	Disposable, long	A or V	12
5832S	Reusable, small clip	A or V	12
5833SL	Disposable, small clip, long	A or V	12

Patient cables

Products	Model	Type	Channel	Length (ft)
	5492AL 5492VL	Reusable, long Reusable, long	A V	12 12
	5846AL 5846VL	Disposable, long Disposable, long	A V	12 12

Other

Model	Type	Device compatible
53922	Disposable cover	5392
53923	Carrying case	5392
53921GLBL	IV pole replacement	5392
53408	Replacement covers (main covers and rapid atrial pacing cover)	53401
53409	Carrying case	53401
53407	IV pole replacement hook and replacement knobs	53401

Pacing leads

Model	Type	Channel	Length (mm)
6491F	Unipolar, pediatric	A or V	525
6492F	Unipolar, atrial	A	525
6494F	Unipolar (two per pack)	A or V	610
6495F	Bipolar, coaxial	A or V	475
6500F	Unipolar, premium	A or V	525
